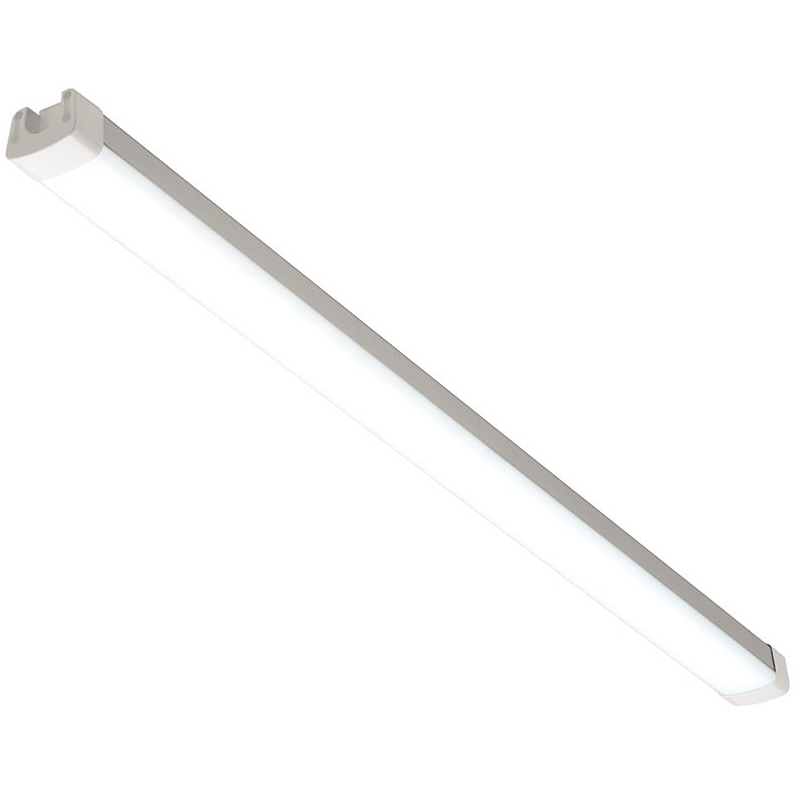

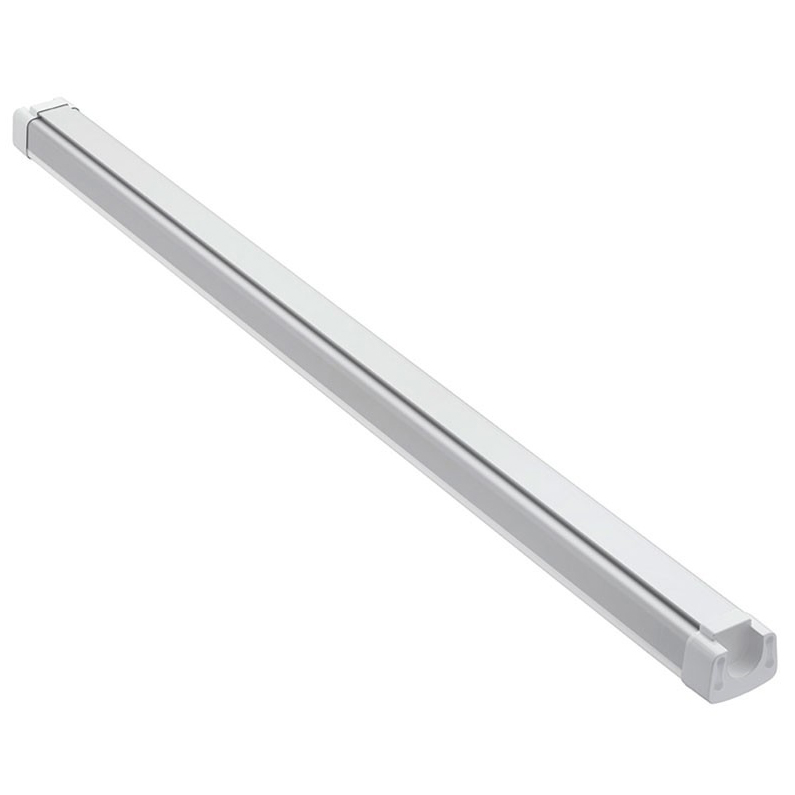

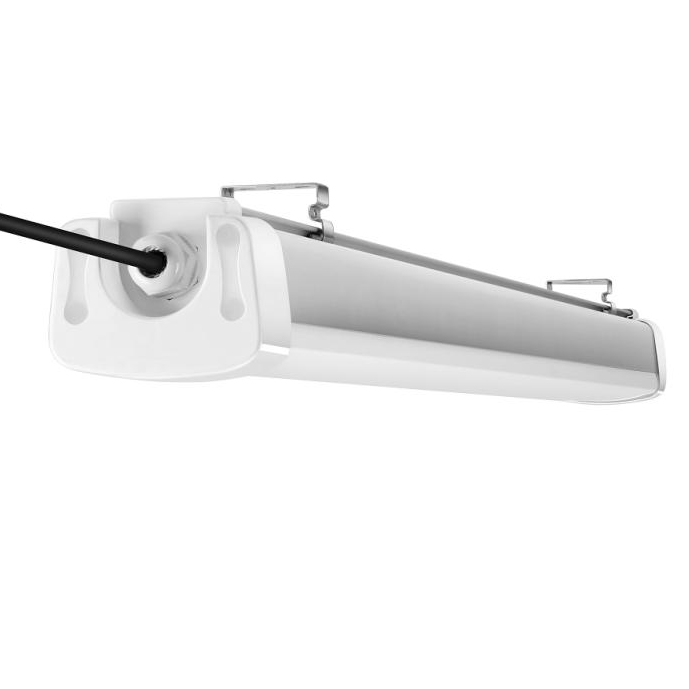

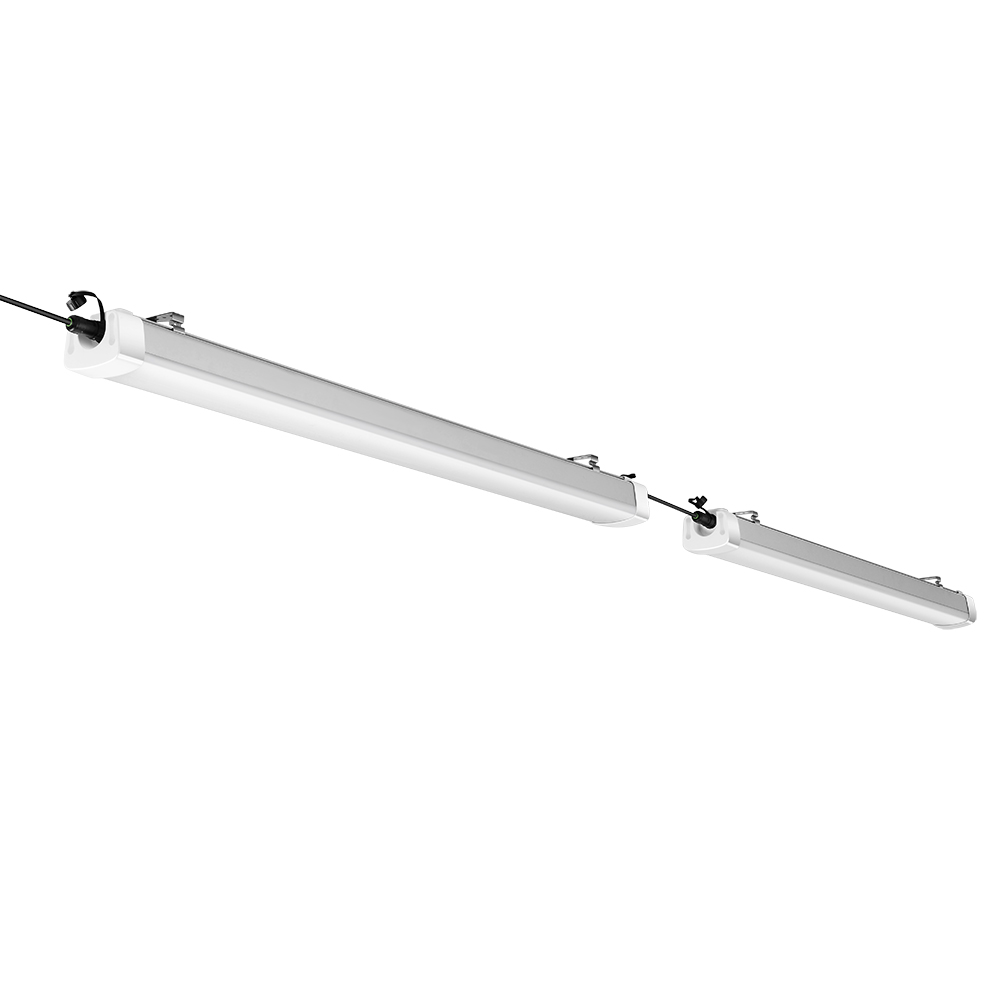

LED Tri Proof Batten Light 2ft 4ft 5ft 20W 30W 40W 50W 60W 80W
>> Model NO.: ILED-TRP-(XXX)A
SAA LED Triproof Lights is a new design Tri Proof Luminaires, adopt LM80 LEDs, SAA,TUV,UL,CE LED driver,PF>0.9, and good heat sink can make the max wattage to 80W in 150cm, the size range is 60cm,90cm,120cm and 150cm, the wattage is 30W,40W,60W and 80W. The luminaires have approved SAA,TUV,CE and RoHS.
Contact Now
CLICK HERE TO SEND INQUIRY
Description
Features:
|
Model |
Wattage |
Lumen Output |
Dimensions |
|
ILED-TRP-60A |
30W |
3000LM (100LM / W) |
600x90x74mm |
|
ILED-TRP-90A |
40W |
4000LM (100LM / W) |
900x90x74mm |
| ILED-TRP-120A | 60W | 6000LM (100LM / W) | 1200x90x74mm |
| ILED-TRP-150A | 80W | 8000LM (100LM / W) | 1500x90x74mm |
Other Parameters
|
Input |
220V~240VAC 50/60Hz |
LED Source |
LM80 LEDs |
|
Materials |
Aluminum + PC |
PF |
>0.9 |
|
CCT |
2800-7000K |
CRI |
>80 |
|
Electrical Classification |
Class I |
IP Class |
IP65 |
|
Beam angle |
120° |
Body Color |
White Painted or Silver |
|
Warranty |
3~5 years |
Certification |
CE&RoHS&SAA,TUV |
Package Information:
|
Model |
Carton Size |
Quantities / Carton |
Net Weight/Carton |
Gross Weight / Carton |
|
ILED-TRP-60A |
650x250x210 mm |
6 pieces |
9.0 KGS |
9.6 KGS |
|
ILED-TRP-90A |
950x250x210 mm |
6 pieces |
13.5 KGS |
14.2 KGS |
| ILED-TRP-120A | 1260x170x210 mm | 4 pieces | 12 KGS | 12.8 KGS |
| ILED-TRP-150A | 1560x170x210 mm | 4 pieces | 14.8 KGS | 15.5 KGS |
Application:
Widely used in Schools, Shops, Nursing Homes, Offices, Hospitals, Meeting Rooms, Hotels, Corridors, Warehouses, Replacement for traditional T8 Fluorescent Tube Light, etc.
|
Suffix |
DM |
DM10 |
DALI |
EM |
MS |
EMS |
|
Function |
Triac Dimmable |
0-10V Dimmer |
DALI Dimmable |
Emergency |
Motion Sensor |
Emergency+Motion Sensor |
