LED Batten Light 3CCT 1200mm 1500mm 20-60W DALI Emergency

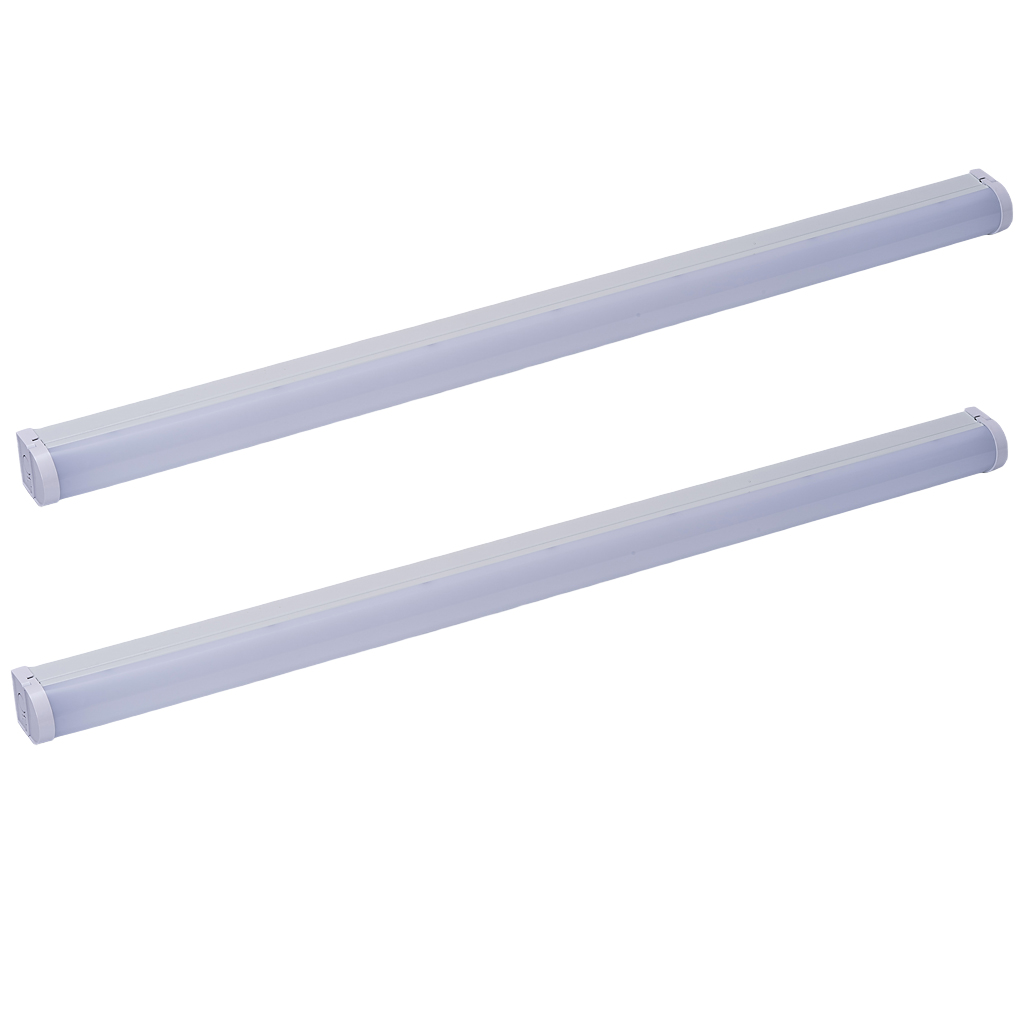

The 3CCT Watts Selectable LED Batten Light is built for practical, energy-efficient illumination in schools, offices, retail stores, warehouses, and parking structures. Two frame lengths cover most ceiling layouts: the 1200mm model runs 20–40W producing 2400–4800 lumens, and the 1500mm model  runs 40–60W producing 4800–7200 lumens. Both share the same 62 mm width and 72 mm depth, giving a low-profile look that suits corridors, open-plan offices, and storage areas alike.

Tech specs

Both models accept 220–240VAC or 110–277VAC input, so one SKU covers regions with different mains voltages without requiring a separate driver. The built-in driver delivers a power factor above 0.9 and flicker-free operation, which matters for spaces where people spend extended periods under the lights — cameras, screens, and eyes all perform better without visible flicker. Three colour temperatures are available: 3000K (warm white), 4000K (neutral white), and 5000K (cool white). The factory defaults to 4000K, but a dip switch inside the driver lets you change the output on site without replacing any components. Wattage is also selectable by dip switch, so you can match the light output to the ceiling height and usage pattern of each zone.

The LED source is LM80 rated with CRI above 80, meaning colours render naturally without the washed-out look that cheap LEDs produce. The housing is iron steel with an integrated heat sink that draws thermal energy away from the LED board, keeping junction temperatures lower and supporting longer life. The PC diffuser is anti-UV and resistant to yellowing, so light output and colour consistency stay stable year after year. IK08 impact resistance covers typical indoor warehouse and workshop bumps. The fixture is Class I and carries SAA, CE, and ROHS certifications for compliance in most export markets.

Control and emergency variants

Three driver types are offered. The standard version runs on mains power only. The 0-10V variant accepts analogue dimming signals from a wall controller or building management system, letting you lower light output during daytime when natural light is sufficient. The DALI variant provides digital addressable control — each fixture can be individually addressed and grouped for zone-based scheduling and scene setting. A 3-hour emergency backup version is also available for corridors, stairwells, and exit routes that require certified escape lighting. Emergency versions include self-testing capability on request, so building managers can verify battery health without manual intervention.

Installation details

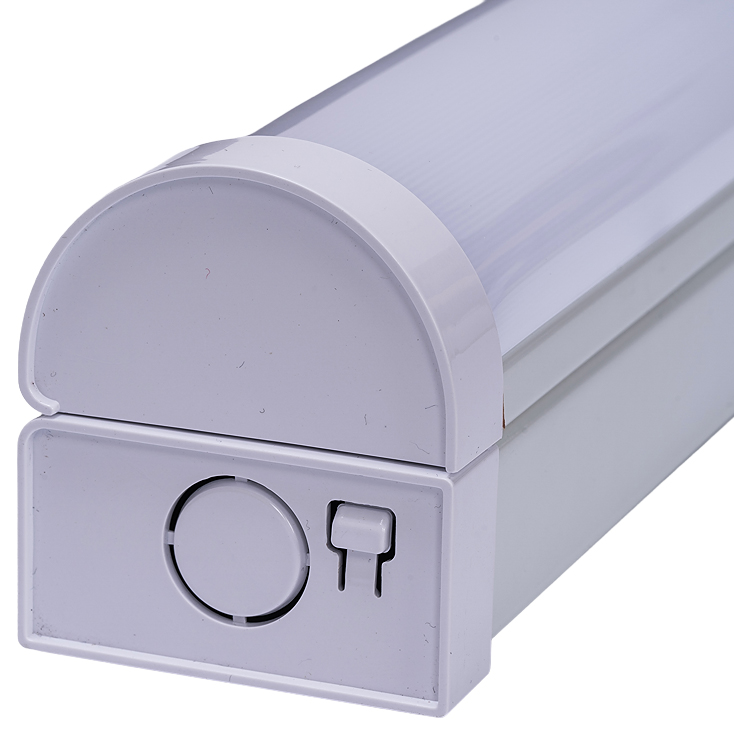

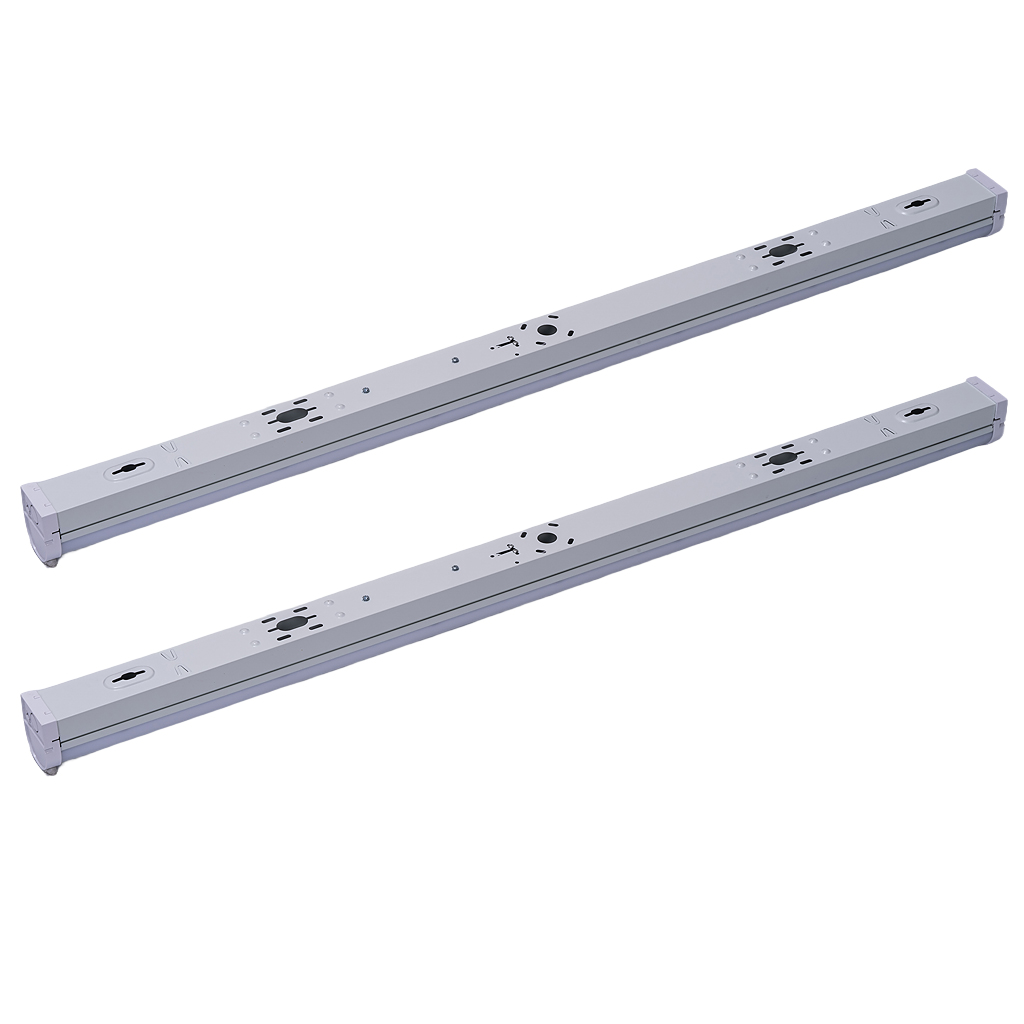

The batten supports surface-mount and pendant suspension. Cables enter from either end of the housing or from the bottom through the base, depending on your conduit layout. The hinge design is the key practical difference: instead of detaching the lamp body completely — which means handling a loose cover while you wire the base — the body stays connected to the base via a hinge. You unlock the base line, secure the base to the ceiling, connect the wires, then swing the body back into place. Fewer parts to manage and faster turnaround on large installations.

Where it fits

IP21 makes this an indoor-only fitting — it is protected against vertically dripping water and solid objects larger than 12.5 mm, but it is not sealed against splashes, humidity, or dust ingress. Do not install in uncovered car parks, wash-down areas, or exposed exterior walls. The iron steel body and IK08 rating make it suitable for environments where fixtures are exposed to occasional bumps and vibration, such as warehouses, workshops, and parking structures. The wide-voltage driver handles both 110V and 220V mains without modification, which simplifies specification for international projects.

Why do buyers pick the ILED-LL series over other batten lights? Here is what we hear from customers:

Hinge design that stays attached. Most rival battens require you to remove the lamp body entirely to access wiring terminals. Ours uses a hinge so the top stays connected while you work. That saves time on every fitting and eliminates the risk of dropping or misplacing a loose cover.

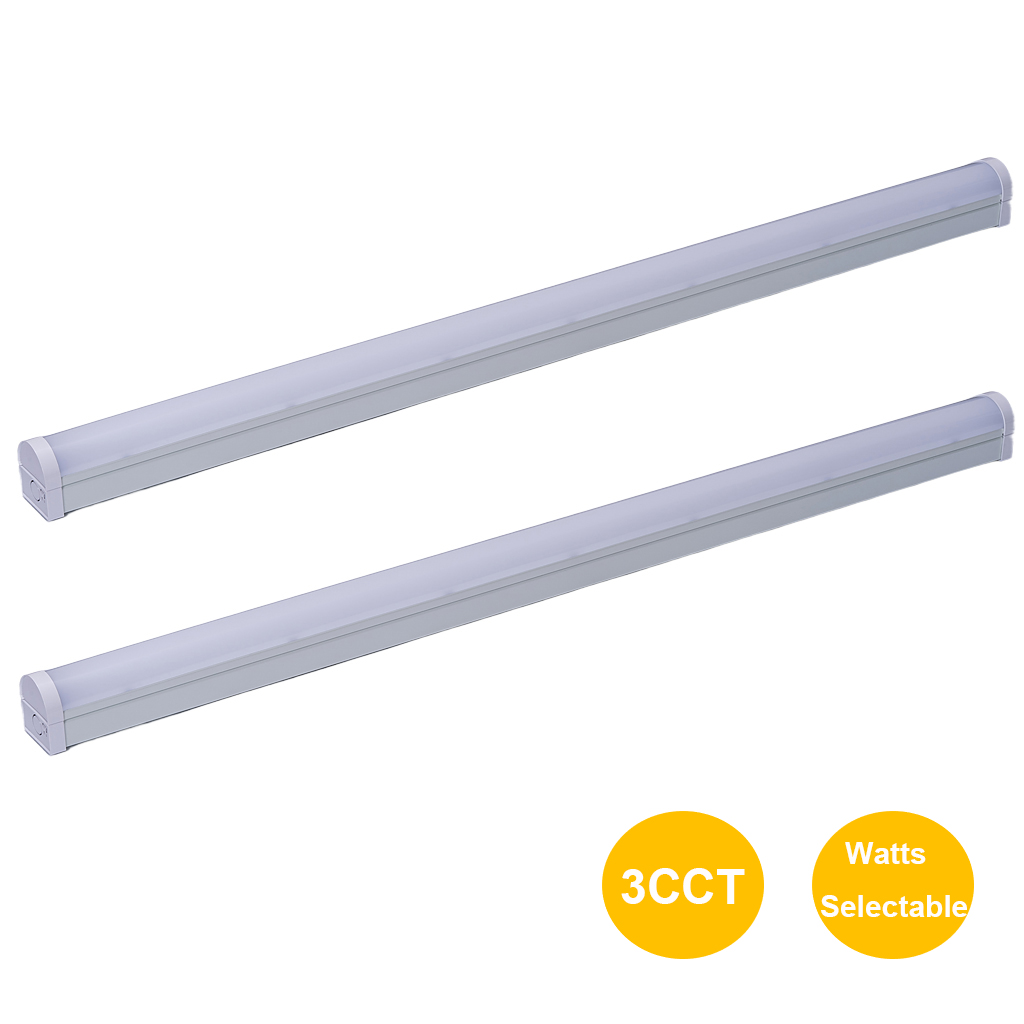

3CCT and wattage selectable in one SKU. The dip switch on the driver handles both colour temperature and output power. One box covers 3000K, 4000K, and 5000K plus two or three wattage steps. Smaller inventory, fewer reorder mistakes.

Iron steel body with heat sinking. Many competitors use PC or ABS housings that trap heat. The steel body acts as a heat sink, keeping LED junction temperatures lower for longer lamp life.

Wide-voltage driver included. The 110–277VAC input covers both 110V regions (North America) and 220–240V regions without needing separate SKUs.

DALI, 0-10V, and emergency versions. Choose the control type that matches your project — or specify the 3-hour emergency variant for spaces that need certified backup lighting.

Educational institutions. — Classrooms, corridors, and libraries benefit from flicker-free output and 3CCT adjustability. Cooler light for reading areas, warmer tones for common spaces.

Offices and commercial buildings. — Open-plan offices, meeting rooms, and reception areas get even, glare-free illumination. DALI or 0-10V variants integrate with building management systems for scheduled dimming.

Retail stores and showrooms. — CRI above 80 renders merchandise colours accurately. Switchable CCT lets retailers adjust the ambiance between a bright retail look and a warmer, more relaxed setting.

Warehouses and light-industry spaces. — IK08 impact resistance and the iron steel body withstand bumps and vibrations common in storage and workshop environments. The wide-voltage driver handles both 110V and 220V mains without modification.

Parking garages and car parks. — Emergency versions provide certified backup illumination along exit routes. The corrosion-resistant steel body and PC diffuser handle damp, poorly ventilated conditions.

Healthcare facilities. — Patient rooms, waiting areas, and staff corridors need reliable, flicker-free lighting. The 3CCT option lets facility managers adjust colour temperature to reduce eye strain during long shifts.

Hotels and hospitality venues. — Corridors, staff areas, and function rooms use the same fixture with colour temperature tuned to the zone — bright and functional for back-of-house, warmer tones for guest-facing spaces.

Stock management. — 3CCT and wattage selectable in one unit means fewer SKUs. One model covers all three colour temperatures and two or three wattage steps, cutting inventory cost and simplifying reordering.

Wide-voltage compatibility. — The 110–277VAC input covers North American 110V markets and European/Asian 220–240V markets with the same fixture. Verify your project voltage before ordering; if a site requires 220–240VAC only, confirm the driver variant with your sales contact.

Hinge design reduces installation time. — Unlike batten lights where the housing detaches completely, ours stays attached via a hinge. You fix the base to the ceiling, wire the terminals, then swing the body back into place. Fewer parts to track and faster turnaround on large jobs.

Emergency version availability. — Not all variants include the 3-hour emergency driver. Specify “emergency” or “self-test” when ordering if your project requires certified backup lighting.

Indoor use only. — IP21 means this fixture is not rated for outdoor, damp, or high-humidity locations. Do not install in uncovered car parks, wash-down areas, or exposed exterior walls.
