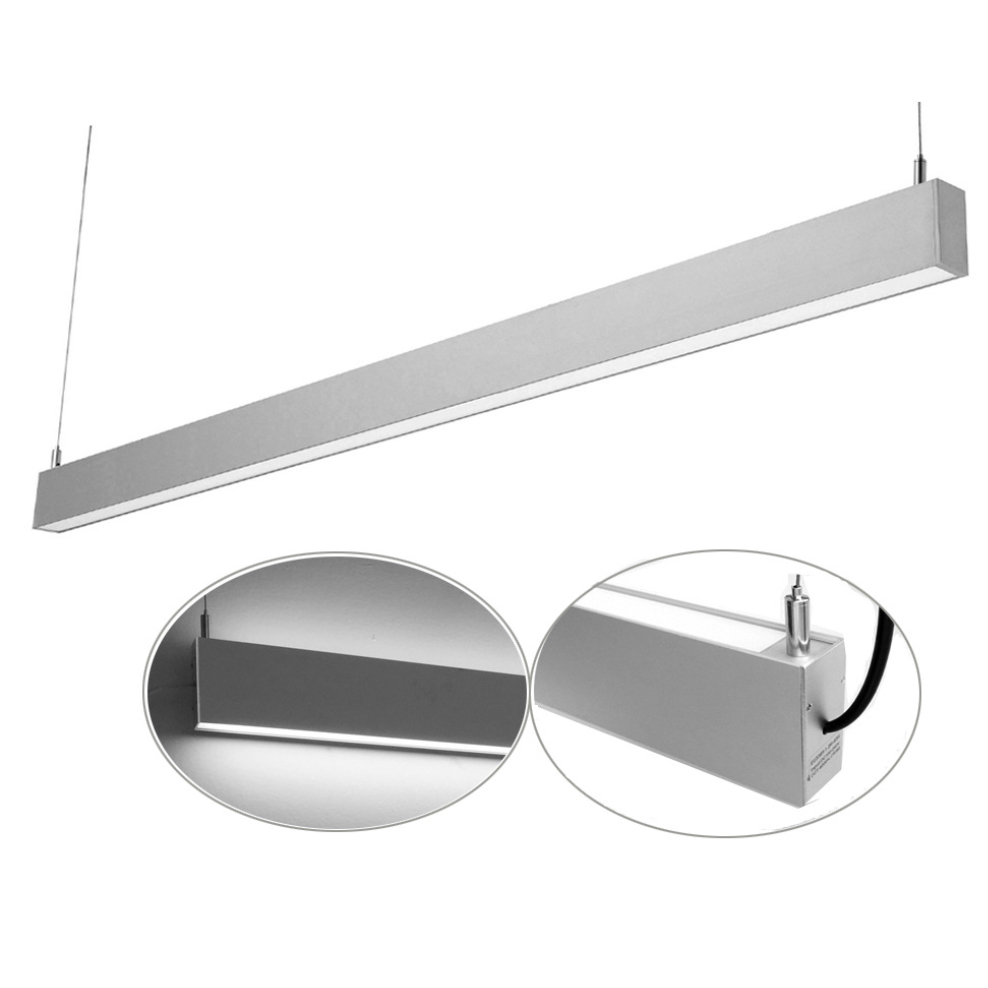

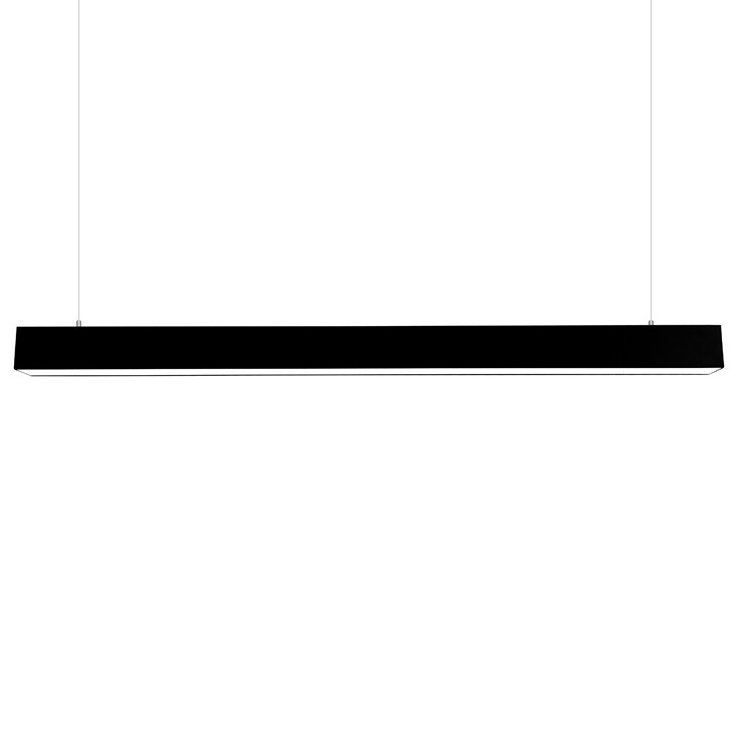

Slim LED Linear Light Up and Down Pendant
Super slim LED linear light is a suspendant lighting which has 1500mm or 1200mm length and very narrow width. It can be up and down lighting, use philips, osram or cree LED source and philips,osram,vs or tridonic driver. Very good for office, dinner room, restaurant lighting.
Highlights
→ High Lumen 90-100LM/W
→ Aluminum Body

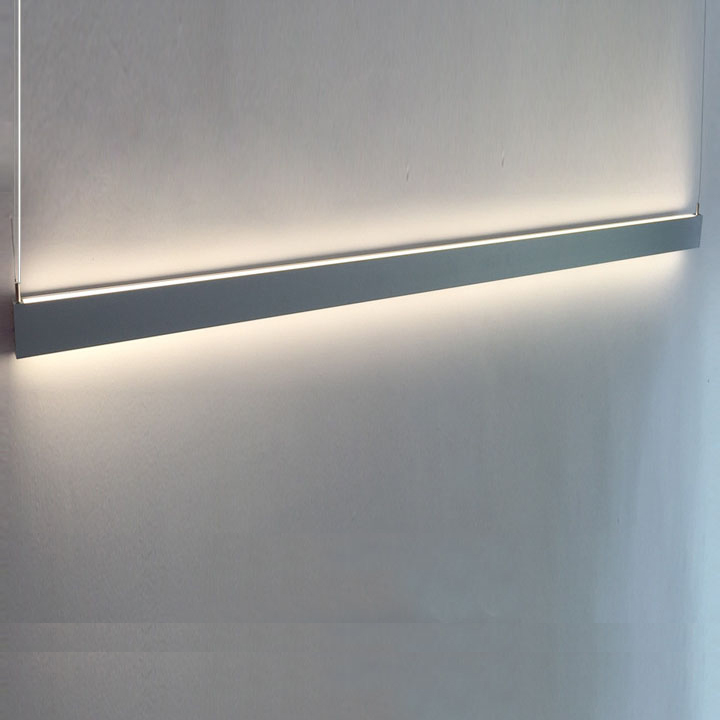

→ Up or Down Lighting
→ DALI,Triac,0-10V Dimmable
| Model | Wattage | Lumen Output | Dimensions |
| ILED-LL-60B | 20W | 1800LM (100LM / W) | L600xW33xH85mm |
| ILED-LL-120B | 30W | 2700LM (100LM / W) | L1200xW33xH85mm |
| ILED-LL-150B | 40W | 2800LM (100LM / W) | L1500xW33xH85mm |
| Input | 220-240VAC/110-277VAC | LED Source | LM80 |
| Wattage | 20W/30W/40W | PF | >0.9 |
| Color Temperature | 2800-6500K | Lumen Effective | 90LM/W |
| Materials | Aluminum | CRI | >80 or 90 |
| Electrical Classification | Class I | IP Rating | IP42 |
| Beam Angel | 120° | Body Color | White/Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
LED linear lights are commonly used in a variety of settings, including offices, retail stores, educational institutions, hospitals, hospitality venues, residential spaces, industrial environments, and outdoor applications. They provide efficient and uniform illumination, making them suitable for task lighting, accent lighting, and general ambient lighting. LED linear lights are often installed in suspended ceilings, under cabinets, along walls, or as pendant fixtures. They offer energy efficiency, long lifespan, and customizable options in terms of length, color temperature, and dimming capabilities, making them a versatile lighting solution for a wide range of applications.
| Model | Wattage | Lumen Output | Dimensions |
| ILED-LL-60B | 20W | 1800LM (100LM / W) | L600xW33xH85mm |
| ILED-LL-120B | 30W | 2700LM (100LM / W) | L1200xW33xH85mm |
| ILED-LL-150B | 40W | 2800LM (100LM / W) | L1500xW33xH85mm |
| Input | 220-240VAC/110-277VAC | LED Source | LM80 |
| Wattage | 20W/30W/40W | PF | >0.9 |
| Color Temperature | 2800-6500K | Lumen Effective | 90LM/W |
| Materials | Aluminum | CRI | >80 or 90 |
| Electrical Classification | Class I | IP Rating | IP42 |
| Beam Angel | 120° | Body Color | White/Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
LED linear lights are commonly used in a variety of settings, including offices, retail stores, educational institutions, hospitals, hospitality venues, residential spaces, industrial environments, and outdoor applications. They provide efficient and uniform illumination, making them suitable for task lighting, accent lighting, and general ambient lighting. LED linear lights are often installed in suspended ceilings, under cabinets, along walls, or as pendant fixtures. They offer energy efficiency, long lifespan, and customizable options in terms of length, color temperature, and dimming capabilities, making them a versatile lighting solution for a wide range of applications.
