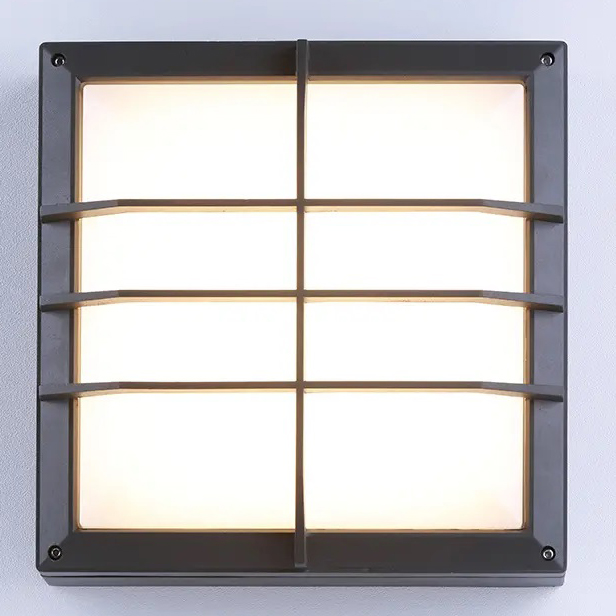

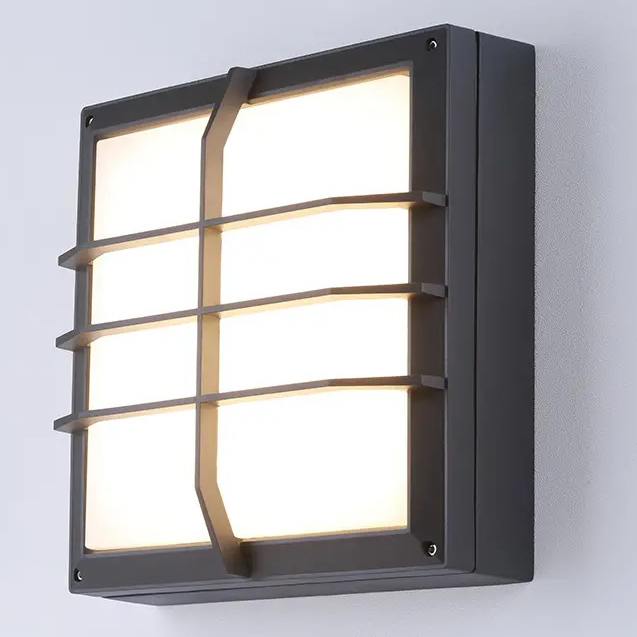

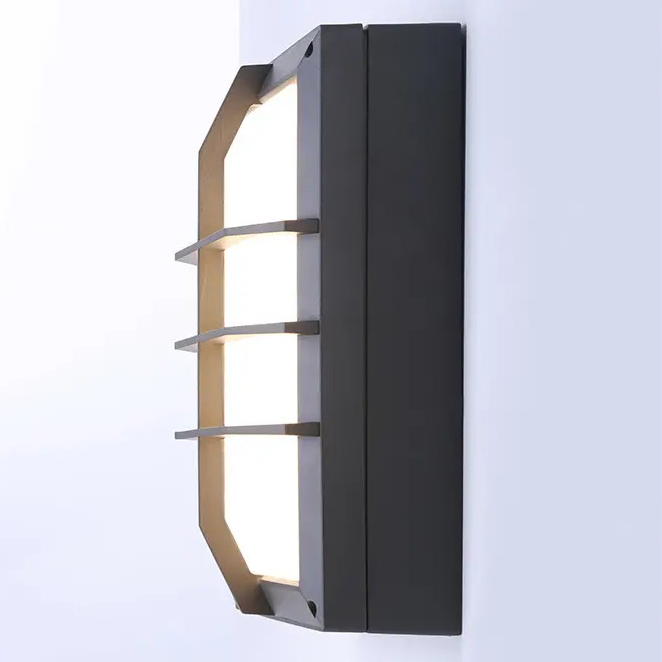

Square LED Bulkhead Light Grille Crossing Aluminium Waterproof IP65 18W

>> Model NO.: ILED-BH-R275-GL S

ILED-BH-R275-GL S is a strong impact resistant light fitting featuring a professional LED light source and integral constant current LED driver. ILED-BH-R275-GL S is also available in several sizes and various of functions such as sensor,dimmable,dali and emergency. Typical applications include mining & industrial sites, government projects, education facilities, other commercial and industrial projects.

Contact Now

CLICK HERE TO SEND INQUIRY

Description

Features:

Square Aluminium Waterproof IP65 18W Grille Crossing LED Bulkhead Light

- Commercial Lighting Solution Key Parameters

Model	Wattage/Lumen	Cover	Dimensions
ILED-BH-R275 S	18W / 1800LM	Plain	270x270x78mm
ILED-BH-R275-GL S	18W / 1800LM	Grille Crossing	270x270x78mm
ILED-BH-R275-EL S	18W / 1800LM	Eyelid Half Moon	270x270x78mm

Input	110-240VAC or 110-277VAC	LED Source	LM80
Watts	18W	Lumen Effective	100LM/W
Lumen Output	1800LM	Size	270x270x78mm
Materials	Aluminum+PC	PF	>0.9
CCT	2800-6500K	CRI	>80
Electrical Classification	Class I	IP Class	IP65
Beam Angel	120°	Body Color	White / Black /Silver Gray
Warranty	3-5 years	Certifications	SAA,CE,RoHS

Package Detail

Square Aluminium Waterproof IP65 18W Grille Crossing LED Bulkhead Light

- Commercial Lighting Solution

Net Weight	Quantites /Carton	Carton Size	Gross Weight/Carton
1.8KG	10 pcs	60x54x32cm	20KGS

Application

Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.

Color Temperature and Color of Body will be as the Postfix of all code. CCT: 3000K – 3K / 4000K – 4K / 5000K -5K / 6000K-6K Color Finished: White Painted – WH / Black Painted – BL / Silver Gray / SG Standard CCT and Color Finished: Black Painted, 3000K. These covers have 3 styles, a. Plain, which is the standard b. Grille Crossing, which showed in the item NO. as –GL c. Eyelid Half Moon, which showed in the item NO. as -EL For example: Normal, 4000K, 18W, Black Painted , the detail code is ILED-BH-R275 S-18W-4KBL Normal, 4000K, 18W, Black Painted , Grille Crossing, the detail code is ILED-BH-R275-GL S -18W-4KBL
270mm 18W Square Grille Crossing LED Bulkhead Order Items
Item NO.	Function Detail	MOQ
ILED-BH-R275-GL S -18W	Normal	100 pieces
ILED-BH-R275-GL S -18W -MC	On/Off Motion Sensor	100 pieces
ILED-BH-R275-GL S -18W -MLC	Dimmable Standby Sensor	100 pieces
ILED-BH-R275-GL S -18W -EM	Emergency 3 Hours	100 pieces
ILED-BH-R275-GL S -18W -EMS	Sensor + Emergency 3 Hours	100 pieces
ILED-BH-R275-GL S -18W -MLEM	Dimmable Standby Sensor + Emergency 3 Hours	100 pieces
ILED-BH-R275-GL S -18W -MLS	Mast Slave Motion Sensor	100 pieces
ILED-BH-R275-GL S -18W -DALI	DALI Dimmable	100 pieces
ILED-BH-R275-GL S -18W -DM	Triac Dimmable	100 pieces
ILED-BH-R275-GL S -18W -DM10	0-10V Dimmable	100 pieces
