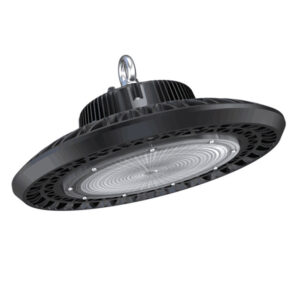

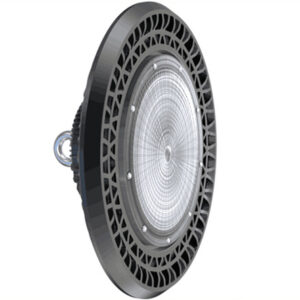

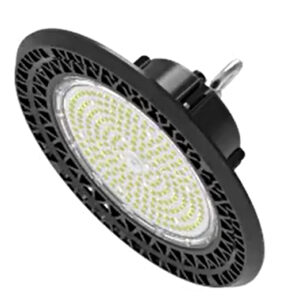

UFO LED High Bay Luminaires 60W-240W
ILED-HB-C UFO LED High Bay Luminaires which are IP65,60W-240W and pendant mounted, it uses Phillips or CREE LED as lighting source and meanwell driver with top quality and competitive price. DALI,emergency and motion sensor are option.
Highlights
→ IP65,IK10
→ Aluminum Body
→ 130LM/W
→ DALI,Emergency,Motion Sensor
| Model | Wattage | Lumen Output | Dimensions |
| ILED-HB-C60W | 60W | 7800LM (130LM / W) | Ф280mm |
| ILED-OL-C80W | 80W | 10400LM (130LM / W) | Ф280mm |
| ILED-OL-C100W | 100W | 13000LM (130LM / W) | Ф280mm |
| ILED-OL-C120W | 120W | 15600LM (130LM / W) | Ф340mm |
| ILED-OL-C150W | 150W | 19500LM (130LM / W) | Ф340mm |
| ILED-OL-C200W | 200W | 26000LM (130LM / W) | Ф400mm |
| ILED-OL-C240W | 240W | 31200LM (130LM / W) | Ф400mm |
Other Parameters
| Input | 110-277VAC or 220-240VAC | LED Source | Philips 3030 LEDs |
| Materials | Aluminum Body and PC Diffuser | PF | >0.95 |
| CCT | 3000-6000K | CRI | >70 |
| Electrical Classification | Â Class I | IP Class | Â IP65 , IK10 |
| Beam angle | 60°/90°/120° | Body Color | Black Painted |
| Warranty | 5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
UFO LED High Bay Light for Vehicle Repair Plant Lighting
| Model | Wattage | Lumen Output | Dimensions |
| ILED-HB-C60W | 60W | 7800LM (130LM / W) | Ф280mm |
| ILED-OL-C80W | 80W | 10400LM (130LM / W) | Ф280mm |
| ILED-OL-C100W | 100W | 13000LM (130LM / W) | Ф280mm |
| ILED-OL-C120W | 120W | 15600LM (130LM / W) | Ф340mm |
| ILED-OL-C150W | 150W | 19500LM (130LM / W) | Ф340mm |
| ILED-OL-C200W | 200W | 26000LM (130LM / W) | Ф400mm |
| ILED-OL-C240W | 240W | 31200LM (130LM / W) | Ф400mm |
Other Parameters
| Input | 110-277VAC or 220-240VAC | LED Source | Philips 3030 LEDs |
| Materials | Aluminum Body and PC Diffuser | PF | >0.95 |
| CCT | 3000-6000K | CRI | >70 |
| Electrical Classification | Â Class I | IP Class | Â IP65 , IK10 |
| Beam angle | 60°/90°/120° | Body Color | Black Painted |
| Warranty | 5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
UFO LED High Bay Light for Vehicle Repair Plant Lighting
Feedback from the Clients Who Used
Improving your workspace with LED high bay lights from iLed. Designed for optimal lighting and energy efficiency, these lights are perfect for warehouses, factories and commercial buildings. Experience increased productivity and cost-effectiveness with iLed’s high-quality lighting solutions.
Luarent Bretaud
Key Account
There are many spot lighting by UFO high bay light in the market. But iLed designed a 240W panel high bay light for our projects to big supermarkets with has more than 10 meters. iLed did it with 4 columns of pure aluminum profile and seperated Meanwell driver, LumiLEDs LED, not only strong long life, also lumen effective to 130LM/W.
Joachim Schaffhausser
Lighting Designer
We confirmed with buying LED high bay lights from iLed after testing their 200W sample, it uses enough aluminum heat sink, meanwell driver IP65 and LumiLEDs LED. Meanwhile,the body design are very smart for quicker heat sink. All the data are very good after temperature test and photometric test.
Charles Aiken
Procurement Officer
We used 100W UFO LED high bay lights to save the energy cost of a warehouse for our clients less than 2 years. Our clients decided to replace the rest 15 warehouses with iLed’s 100W-200W LED high bay lights from us in passed 6 years. The 100W high bay lights are working well until now.
Martin Brook
Procurement Manager
We chosed iLed LED high bay lights with their nice UFO design and top brands of components. So that we are feeling free to provide these high bay light fixtures to our warehouse lighting projects. It turns out that these high bay lamps are still working well after five year.
Mark Down
Project Manager
We bought 200W LED High Bay Lights from iLed are a great choice for high ceiling spaces. With their Meanwell driver and LumiLEDs led, they provides excellent illumination and efficiency. iLed offers superior lighting solutions.
Jeff Vincent
CTO of L&H
Can’t find a suitable product?
All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.
Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
