DMX House Lights RGBW LED 160W for Church Lighting

The FEL-AP1 L is a 160W DMX512 RGBW LED house light. It is designed for ceiling installation in churches, theaters, event halls, and commercial spaces where wide-coverage wash lighting is needed.

Light source and color

The fixture uses an RGB+White LED engine good for 16.7 million colors. The dedicated white channel produces a clean neutral white that RGB-only fixtures cannot do. Color mixing happens at the LED level, so there are no color shadows or fringing on the lit surface. The fixture can run in 4-channel (RGBW), 5-channel (RGBW + dimmer), 7-channel (RGBW + dimmer + strobe + program), or 9-channel (extended) mode. Set the mode via the DMX controller or the onboard controls.

Power and dimming

Input range is 110-240VAC, so it works on standard mains voltage in most regions. Power draw is 160W at full output. Dimming uses 16-bit DMX control, which gives 65,536 steps per channel. Fade transitions are smooth with no visible stepping even at low brightness levels where 8-bit systems show their limits. The fixture also supports a 0-30Hz electronic strobe. PWM frequency is 20kHz on the standard version, which is high enough to avoid flicker on camera.

Beam and coverage

Two lens options are available: 35° and 60°. The 35° lens gives a tighter beam for higher intensity over a smaller area. The 60° lens spreads the light wider for general wash coverage. Pick based on ceiling height and the size of the area you need to cover. The housing measures φ176mm in diameter and 547mm tall. The fixture body is compact enough for tight ceiling grids but long enough to provide good passive cooling surface area.

Construction and cooling

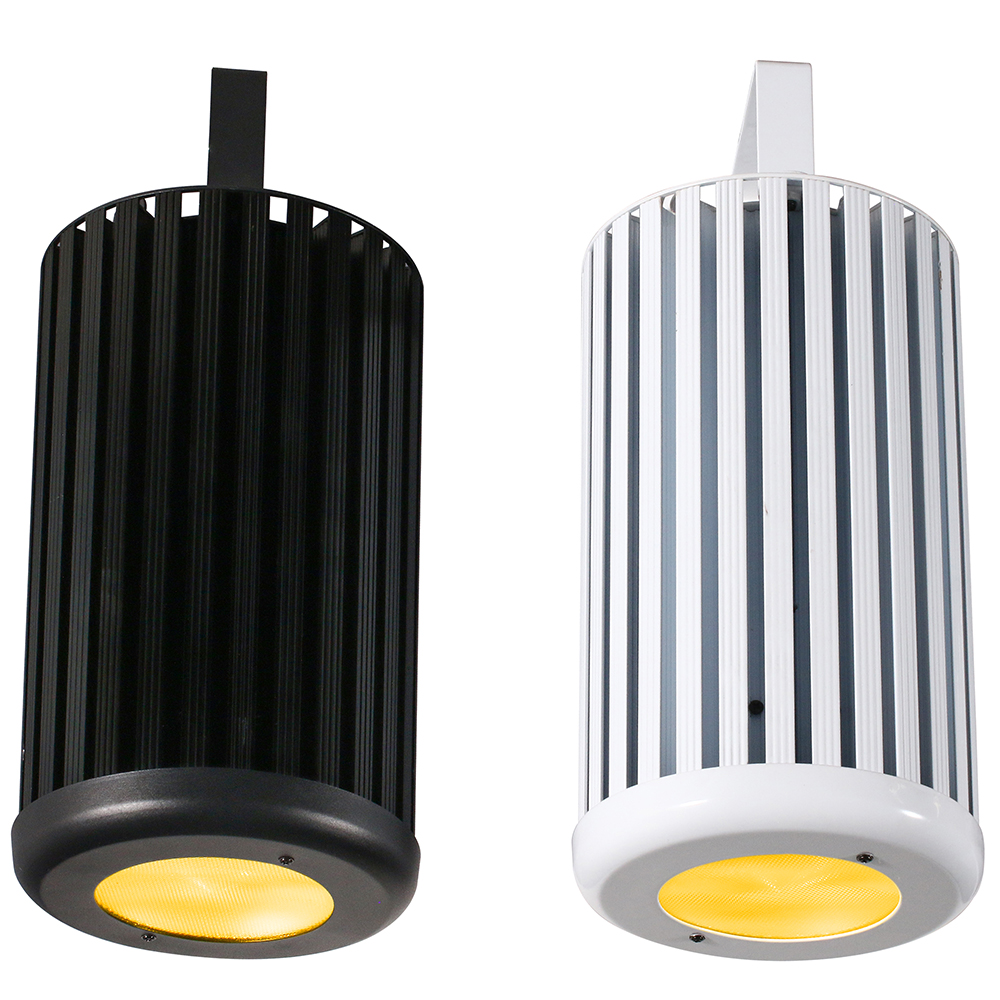

The body is extruded aluminum. It acts as both the structural housing and the heat sink. Cooling is entirely passive — no fans, no noise. This matters in quiet environments such as churches and theaters where fan hum would be distracting during a service or performance. The finish is available in black or white. Choose white on painted ceilings where the fixture should blend in, or black if it is mounted in an open truss where light spill onto the housing is a concern.

Mounting

The fixture can be surface mounted to a ceiling or pendant mounted using the included hardware. Pendant mounting works when the ceiling is high and the light needs to sit lower for adequate coverage. The XLR data connectors (3-pin or 5-pin, specify when ordering) are on the side of the housing and remain accessible after installation. The power input uses a locking Seetronic or Neutrik connector — it will not pull loose accidentally.

Control and connectivity

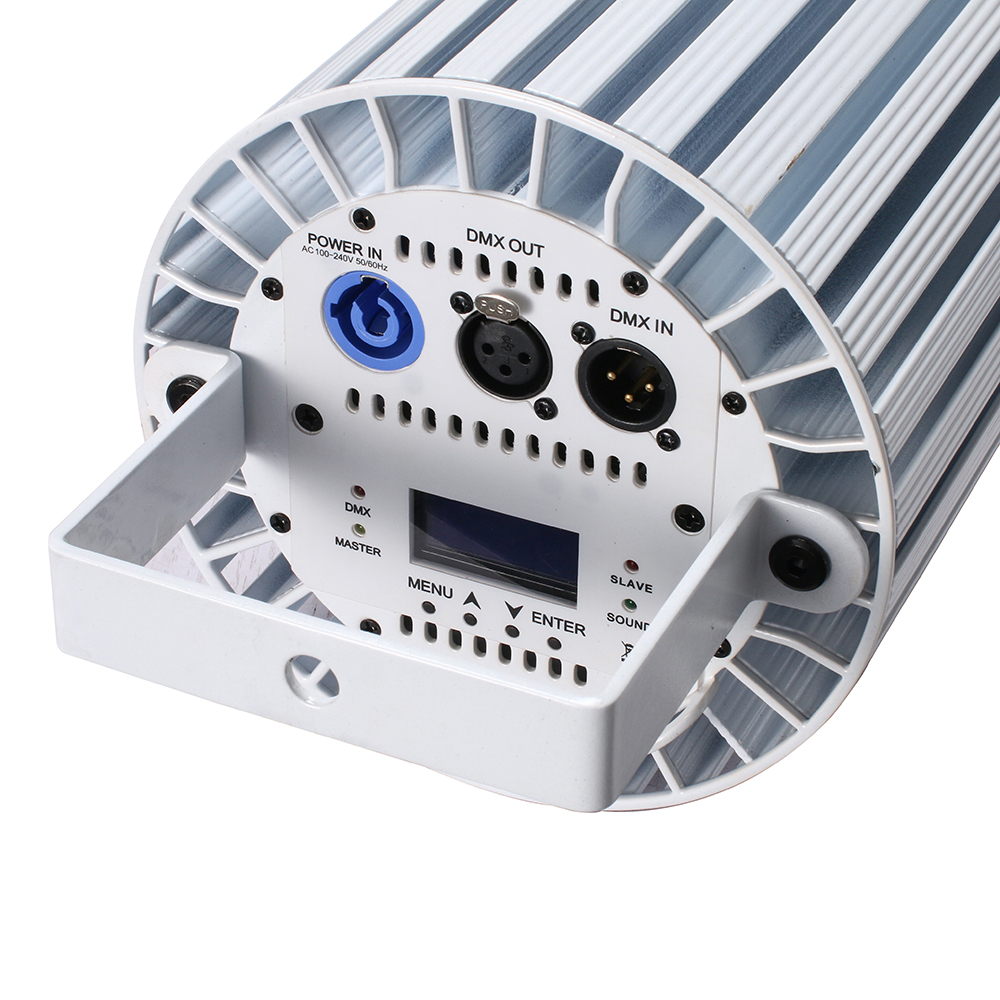

The FEL-AP1 L uses the DMX512 protocol, the industry standard for stage and architectural lighting. Data in and through use 3-pin or 5-pin XLR connectors, with a male input and a female output for daisy-chaining multiple fixtures. The fixture has built-in programs that run without an external controller — useful for standalone setups or trade-show displays where you want color cycling without a console. Power input uses a Seetronic or Neutrik connector depending on the order configuration.

Lifespan and reliability

Rated life is 50,000 hours. At 12 hours per day, that is roughly 11.5 years. The driver is built in, so there is no external driver box to mount or cable to route. IP20 rating means indoor use only — dry, climate-controlled spaces. The housing is UV-resistant and should not yellow over time even in sunlit rooms.

Typical use cases

These fixtures are commonly installed in churches for stage and house lighting, in theaters for auditorium wash lights, in event halls for banquet lighting, and in commercial spaces that need tunable color ambiance. The built-in programs and DMX compatibility make them flexible enough for both standalone and fully programmed setups. Most installers use the 60° lens for general house lighting and switch to 35° when tighter beam control is needed for stage areas.

Buyers choose the FEL-AP1 L for a few specific reasons:

RGB+White output. Most color fixtures in this class skip the dedicated white channel. Having white means the fixture works for general illumination during the day and color wash at night, without needing two separate fixture types on the same ceiling.

16-bit dimming. Standard 8-bit DMX dimming gives 256 steps per channel, which shows as visible jumps at low levels. 16-bit gives 65,536 steps. Fades look smooth, which matters in church and theater settings where dimming is used throughout a service or performance.

Passive cooling. No fans. In a quiet church service or theater scene, fan noise from lighting fixtures is a real problem. The aluminum body handles heat dissipation with no moving parts.

Built-in programs. If you do not have a DMX controller, or you only need color cycling for a wedding or reception, the fixture runs standalone. Set it up, plug it in, and let it cycle.

DMX RGBW house lights like the FEL-AP1 L work well in several indoor settings:

Churches and worship spaces. Installed as house lights for congregation area coverage. The white channel handles daylight services while the color channels work for holidays, seasonal events, and special services. Silent operation means no fan noise during quiet prayers.

Theaters and performance venues. Used as auditorium house lights that dim to black before a show and come up during intermission. The 16-bit dimming makes transitions look professional. The DMX control ties into existing theatrical consoles.

Weddings and events. Ballrooms and banquet halls that need color wash lighting for receptions. The built-in programs run without a DMX operator — just set it to fade mode and let it cycle through the evening.

Commercial retail and hospitality. Stores, showrooms, and hotel lobbies that change their lighting color seasonally or for promotions. The RGB+White engine gives a clean white for daytime and saturated color for evening ambiance.

Museums and galleries. Adjustable accent lighting for exhibits and displays. The dedicated white channel provides neutral illumination when accurate color rendering matters for artwork.

A few things to check before ordering:

Ceiling height and lens selection. If the ceiling is higher than 4 meters, the 35° lens works better. For standard 3-meter ceilings, the 60° lens provides wider coverage. Measure your space before choosing.

DMX controller compatibility. The fixture uses standard DMX512. Make sure your controller supports the channel mode you plan to use. Most modern consoles work fine. Older or generic DMX controllers may need the simpler 4-channel mode.

XLR pin configuration. The fixture is available with 3-pin or 5-pin XLR. If your existing setup uses one type, order accordingly. Factor in adapters if needed.

Power connector type. The fixture ships with Seetronic or Neutrik power connectors. Confirm which one matches your existing power distribution.

Installation access. Set the DMX address and channel mode before mounting if possible. It is easier on a workbench than on a ladder.

Mounting method. Surface mount is simpler for low ceilings. Pendant mount works for high ceilings but needs a secure attachment point. Confirm your ceiling structure can support the weight.
