| Input | 220-240VAC/110-277VAC | LED Source | LumiLEDs LM80 |
| Wattage | 500W | Dimensions | φ445x350mm |
| Lumen Effective | 120LM/W | PF | >0.9 |
| Color Temperature | 2800-6500K | CRI | >70 (CRI80 is option) |
| Materials | Aluminum+ tempered glass | IP Rating | IP66 |
| Beam Angel | 25° ,45° or 60° | Body Color | Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |

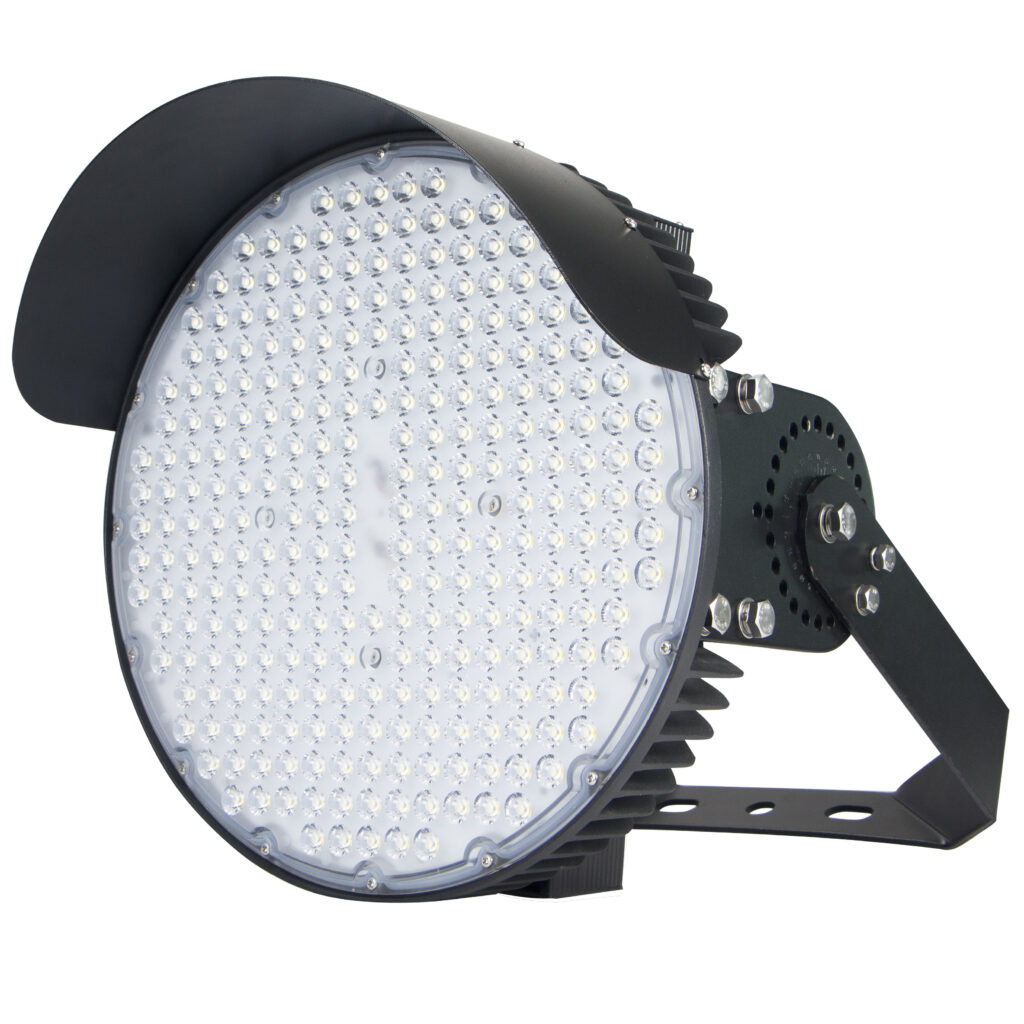

500W LED Flood Light | Tower Hanging Lighting Sport Tunnel
The ILED-FL9 500W is a high-output LED flood light for tower hanging and sport tunnel installations where large-area illumination is required. Its round reflector housing, φ445×350 mm, couples a 500W source, about 60,000 lm at 120 lm/W, with a beam you choose from 25°, 45°, or 60°, to suit the mounting height and the coverage you need. The die-cast aluminium body and tempered glass front carry an IP66 rating for sustained outdoor exposure. Universal 220-240VAC / 110-277VAC input and an optional CRI80 make the FL9 500W a flexible choice for stadiums, industrial sites, and architectural applications.
Key Highlights
- DieCast Aluminum
- IP66
- 120LM/W
- LumiLEDs LED,Meanwell Driver
- DALI
Category: Industrial LED Light , LED Flood Light
Tags: Area Lighting
The ILED-FL9 500W is a high-output LED flood light built for tower hanging and sport tunnel work, where you need a strong, even pool of light over a large area. The round reflector housing, φ445×350 mm, holds a 500W source at about 60,000 lm (120 lm/W). You choose the beam from three options, 25°, 45°, or 60°, to match the mounting height and the spread you want. The die-cast aluminium body and the tempered glass front are sealed to IP66, and the input runs on 220-240VAC or 110-277VAC, so the same unit works across North American and European grids.
The three beam options
Instead of one fixed wide angle, the FL9 500W comes with a 25°, 45°, or 60° beam, chosen to the job. The 25° beam throws a tight, bright pool that reaches far, so it suits the tallest tower mounts where you want a defined area lit hard. The 45° beam is the middle ground for most pitch and yard work. The 60° beam opens the light out wider, for lower mounts where you want broad, even coverage. Pick the angle to the mounting height and the coverage follows. The round reflector projects symmetrically in all directions, so the fixture works regardless of how the bracket is turned on the pole or truss.
Housing for harsh outdoors
The body is die-cast aluminium with a black powder-coat finish, so it is rigid and resists corrosion in an exposed outdoor spot. The IP66 seal keeps dust out and stands up to powerful water jets from any direction, which is what a tower-mounted fixture sees through rain, wind-driven spray, and seasonal temperature swings. The tempered glass front takes impact from debris, maintenance tools, and the odd wayward object far better than a polycarbonate diffuser. It is the part that keeps the fixture working after years of exposure.
Wide voltage
The input is 220-240VAC or 110-277VAC, so the same unit is specified for a 110-120V North American site or a 220-240V European one, with no step-down transformer. That wide range also absorbs the voltage drop along the long cable runs that are normal on a tower mount, so the fixture starts and holds at the far end of the circuit.
Colour temperature and CRI
The colour temperature runs from 2800K to 6500K, selectable to suit the venue. CRI is above 70 standard, with CRI80 available on request. For a functional sports or industrial surface the standard CRI is enough, and where colour fidelity matters, for broadcast or a landmark, specify CRI80.
What is in the box
Each unit ships complete: the die-cast body, the tempered glass front, the integral driver, and the mounting bracket for pole, arm, or tower suspension. You supply the 220-240VAC or 110-277VAC supply and the mounting point. The driver is integral, and the standard version is non-dimmable. The reflector is factory-fitted to the source, so there is no field optical alignment to do, and the bracket is sized for pole or truss suspension.
Where it gets used
Use the FL9 500W on football pitches, tennis courts, athletics tracks, large sports complexes, industrial yards, and parking arenas, all from a raised tower mount. The 25°, 45°, or 60° beam is what you match to the height and the area, and the IP66 body is what suits the exposed outdoor location. For a larger stadium or an even wider yard, the FL9 1000W is the bigger sibling.
Certifications and warranty
The FL9 500W carries CE, RoHS, and SAA, and it is backed by a 3 to 5 year warranty. That is the standard set for this class of outdoor flood light, and the warranty covers the LED source and the driver under normal outdoor exposure.
Why do buyers pick the ILED-FL9 500W over other high-power flood lights? Here is what we hear from customers:
A beam you can set — 25°, 45°, or 60°. The FL9 500W comes with three beam options instead of one fixed angle, so you match the throw to the mounting height. The 25° beam throws a hard, far-reaching pool on the tallest towers, and the 60° beam opens up wider, even coverage on lower mounts. The same fixture handles a tight accent pool or a broad wash.
120 lm/W efficacy at 500W. Every FL9 500W unit delivers the same 120 lm/W luminous efficacy, producing about 60,000 lm from a single 500W fixture. That keeps operating costs low even at the upper end of the flood light range.
110-277VAC wide voltage. The dual-range input means the same unit works on a 110V North American grid and a 220-240V European grid without conversion. For contractors supplying multiple sites, that avoids stocking separate regional variants.
The FL9 500W delivers about 60,000 lm from a single fixture, compared with 120,000 lm from the FL9 1000W. The 500W uses the smaller φ445×350 mm housing, versus the 1000W’s φ645×380 mm. Both share the 25°, 45°, or 60° beam options, an IP66 rating, the 120 lm/W efficacy, and the wide-voltage input. Choose the 500W for medium-to-large sports fields and industrial yards, and the 1000W for the largest venues.
IP66 means it is fully dust-tight and resists powerful water jets from any direction, a step above IP65. For a tower-mounted fixture, that seals the LED array and driver against dust and hard rain, so it does not pick up condensation or corrosion over years of exposed operation.
It is optimised for downward tower mounting, but the FL9 500W can be aimed at building façades, bridge undersides, and monument surfaces. The 60° beam, the widest of the three options, gives the broad wash for general façade illumination, while a 25° or 45° beam throws a tighter pool for accent or uplighting.
DALI is not in the spec table. The standard FL9 500W uses an integral non-dimmable driver. If you need centralised dimming or daylight harvesting, contact the sales team to confirm whether a DALI-enabled variant exists.
CRI70 renders colours adequately for sports and industrial work, where functional visibility is the priority. CRI80 gives noticeably better colour fidelity, which is preferable for broadcast venues, retail façades, and architectural work where accurate colour appearance matters.
A 1000W metal halide typically produces 60,000-80,000 lm. One FL9 500W, at about 60,000 lm, matches the lower end of that range at half the power. For higher illuminance, two FL9 500W units in a staggered tower layout beat a single metal halide while using less energy.
Stadiums and sports fields. — The primary application. The FL9 500W’s 25°, 45°, or 60° beam and 60,000 lm output cover football pitches, tennis courts, and athletics tracks from tower-mounted positions; you pick the beam to the mount and it delivers uniform illuminance across the playing surface.
Industrial sites and warehouses. — Large-span factories, distribution centres, and aircraft hangars use the FL9 500W for high-bay yard lighting. The IP66-rated housing withstands the dust, oil mist, and temperature swings common in industrial outdoor areas.
Architectural façade and landmark lighting. — Building exteriors, bridge undersides, and public monuments are lit by aiming the FL9 500W upward or at an angle. The 60° beam, the widest option, creates a soft, even wash for general façade highlighting.
Parking structures and transport hubs. — Airport aprons, railway yards, and multi-storey car parks need bright, wide-area coverage. The FL9 500W’s wide-voltage input handles the voltage drop along long cable runs from the central board to distant tower mounts.
Perimeter and security lighting. — Industrial site boundaries, utility compounds, and construction perimeters use the FL9 500W for continuous overnight illumination. The IP66 seal and the tempered glass front resist weather exposure in unattended outdoor locations.
Beam and mounting height. — The 25°, 45°, or 60° beam is matched to the tower mount. The 25° option throws furthest and suits the taller mounts, and the 60° option opens wider and suits the lower ones. Confirm both the beam choice and the mounting height before ordering.
CRI selection. — Standard CRI70 is adequate for sports and industrial use. If the flood light will be used for broadcast venues, retail façades, or architectural accent lighting, specify CRI80 at order, it is not a field-changeable upgrade.
DALI availability. — DALI is not confirmed as a standard feature on the FL9 500W. If you need daylight harvesting or remote dimming, contact the sales team before ordering to confirm whether a DALI variant exists.
Wide voltage. — The FL9 500W accepts 110-277VAC input, covering both North American (110-120V) and European (220-240V) supply. Confirm the local supply voltage; a remote tower point with very low voltage may need a dedicated circuit.
Tempered glass front. — The FL9 500W uses a tempered glass front panel, which is more impact resistant than polycarbonate. For locations with high debris risk, the glass front is the recommended choice.
