DALI 200 Watt Flood Light LED IP66 for Stadium Lighting

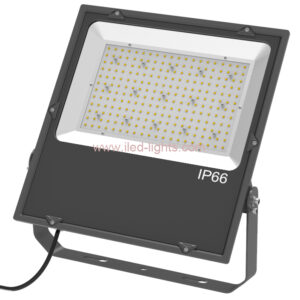

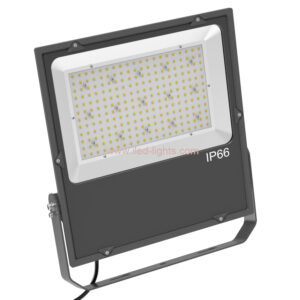

The ILED-FL1 200W is an IP66-rated LED flood light with integral DALI 2-way dimming, built for stadiums, sports fields and large outdoor areas where uniform illumination and centralized control are both required. Unlike the ILED-FL9 series with its round reflector housing, the FL1 uses a rectangular die-cast aluminium body — 379×420×65 mm — that directs light through a 115° beam across a wide rectangular footprint, a pattern better suited to rectangular playing surfaces and linear yard layouts.

Tech specs at a glance

Model: ILED-FL1 200W
Wattage: 200W
Luminous efficacy: 130 lm/W
Dimensions: 379×420×65 mm (rectangular housing)
LED source: LumiLEDs LM80
Beam angle: 115°, rectangular coverage
Color temperature: 2800K–6500K (3CCT selectable via dip switch)
CRI: >80 standard, >70 available on request
Input voltage: 220–240VAC / 110–277VAC dual-range
Power factor: >0.9
IP rating: IP66 — dust-tight, protected against powerful water jets
Body & finish: Die-cast aluminium housing, tempered glass front, black powder-coat
Driver: Integral DALI 2-way dimmable driver
Certifications: SAA, CE, RoHS
Warranty: 5 years

115° beam for rectangular area coverage

The FL1 200W’s 115° beam angle projects light in a wide elliptical pattern that matches the rectangular shape of most sports fields, car parks and industrial yards. At mounting heights between 6 m and 12 m, the beam covers a broad floor area with minimal edge falloff, which reduces the total number of fixtures needed compared to narrower-beam alternatives. This makes the FL1 200W an efficient choice for football training pitches, basketball courts, car park perimeters and warehouse yards where uniform ground-level illuminance matters more than concentrated spot lighting.

The rectangular housing shape also helps: unlike the round reflector FL9, the FL1 projects light symmetrically along its longer axis, which aligns naturally with rectangular venues. When mounted on a pole or bracket, the fixture’s orientation is less critical — the 115° spread compensates for minor rotational misalignment during installation.

DALI 2-way control

The ILED-FL1 200W includes a built-in DALI (Digital Addressable Lighting Interface) driver, enabling 2-way communication with a central lighting management system. DALI 2-way means the controller can both send commands (dim, on/off, set scene) and receive status feedback (actual light output, lamp hours, fault codes) from each fixture. Addressable control allows up to 64 fixtures per DALI line, each with a unique 0–63 address, so individual fixtures or groups can be managed independently.

This is distinct from 0-10V or TRIAC dimming, which are unidirectional — the controller sends a signal but cannot confirm whether the fixture is actually responding. For stadium or sports venue installations where energy savings and maintenance tracking matter, DALI 2-way gives the facility manager real visibility into each light’s operating state.

Build and installation

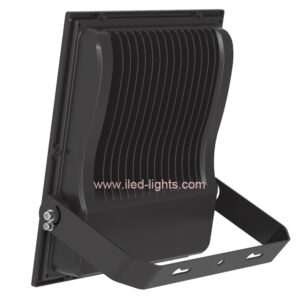

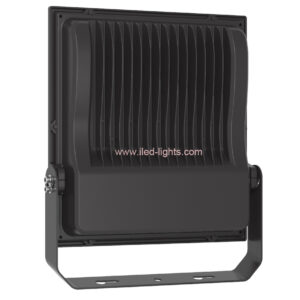

The FL1 200W housing is die-cast aluminium with a black powder-coat finish, providing structural rigidity and corrosion resistance in exposed outdoor locations. The tempered glass front panel offers superior impact resistance compared to polycarbonate diffusers — important for sports venues where stray balls or maintenance equipment may make contact. The IP66 seal protects the internal LED array and driver from dust, rain and wash-down cleaning, which is essential for fixtures mounted on open perimeter poles or roof-mounted brackets.

Mounting is bracket-compatible: the base accepts standard F-couplers, Y-clamps or direct bolt-down to a flat surface. The 65 mm housing depth keeps the profile low enough for tower-arm installations without excessive wind load. Universal 110–277VAC input means the same FL1 200W unit works on both North American (110–120V) and European (220–240V) supply standards, and the wide-voltage tolerance also accommodates voltage drop along long cable runs from the distribution board to distant tower mounts.

Why do buyers choose the ILED-FL1 200W over other flood lights? Here is what we hear from customers:

DALI 2-way dimming built in. The FL1 200W includes a DALI driver as standard. Each fixture is individually addressable on a DALI bus — dimmed, grouped, or monitored for lamp hours and faults — without additional controllers. For stadium operators this cuts both hardware cost and installation time.

IP66 rating, one step above common IP65. Most LED flood lights carry IP65. The FL1 200W is rated IP66 — protected against powerful water jets from any direction, not just low-pressure spray. For perimeter-mounted fixtures in heavy rain or wash-down environments, this is a meaningful margin.

130 lm/W at 200W — high output without excessive power. The FL1 200W produces roughly 26,000 lm from a single 200W fixture. Lower wattage also means simpler mounting hardware and less heat dissipation requirement compared to 400W or 500W units.

5-year warranty. Above the 3-year standard on many entry-level flood lights, reflecting confidence in the integral DALI driver and LumiLEDs LM80-rated LED engine.

Stadiums and sports fields. — The primary application. The FL1 200W’s 115° beam and ~26,000 lm output cover football training pitches, basketball courts and tennis courts from perimeter poles. DALI 2-way control allows zone-based dimming — full for matches, reduced for training — and lamp-hour logging for maintenance.

Outdoor commercial and retail spaces. — Shopping centre car parks, drive-in perimeters and retail forecourts use the FL1 200W for bright, uniform area lighting. IP66 housing withstands wash-down cleaning, and DALI dimming enables daylight harvesting and after-hours security mode.

Transportation infrastructure. — Airport aprons, railway yards and tunnel entrances require reliable flood lighting that withstands vibration, dust and weather. The tempered glass front resists impact from debris, and universal 110–277VAC input handles voltage variations along long cable runs.

Industrial yards and warehouses. — Loading bays, storage yards and factory perimeters use the FL1 200W for overnight security and operational lighting. The IP66 seal protects against dust, oil mist and temperature cycling. DALI integration allows tie-in to the building BMS for automated scheduling.

Parking structures. — Multi-storey and surface car parks require consistent illumination for safety and surveillance. The 115° beam reduces fixture count per bay, and DALI group control lets managers adjust light levels by time of day or occupancy.

DALI system compatibility. — The FL1 200W requires a DALI controller. Confirm your lighting management system supports DALI before ordering. Up to 64 DALI devices share one bus line — plan your addressing layout before installation.

Mounting height. — The 115° beam is optimised for mounts between 6 m and 12 m. At lower mounts the spill extends too far; at greater heights illuminance drops. Confirm your mounting height before selecting fixture count.

CRI selection. — Standard CRI >80 suits most sports and commercial applications. For broadcast or colour-critical work, confirm CRI >80 at order — it is not field-changeable after purchase.

Wide voltage verification. — The FL1 200W accepts 110–277VAC, covering both North American and European supplies. Confirm the local voltage at the mounting point — remote tower points with very low voltage may need a dedicated circuit.

Tempered glass front. — The FL1 200W uses a tempered glass front panel, offering superior impact resistance compared to polycarbonate. For sports venues where stray balls or maintenance equipment pose an impact risk, the glass front is recommended.
