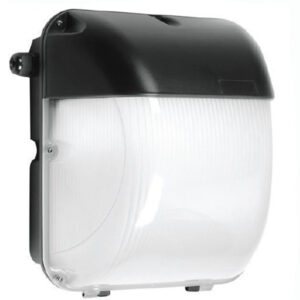

Square Bulkhead Light LED 20 30 Watt IP65 Wall Packed Photocell Wall Packed Emergency

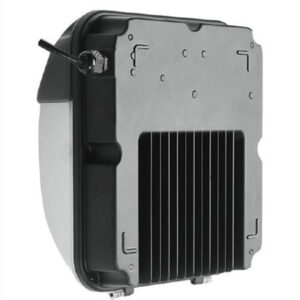

This Square Bulkhead Light use LED source and built-in top-class driver with high lumen output. This is ideal for perimeter wall lighting where colour CCTV cameras are used or even to compliment other LED lighting such as street lights. The die cast aluminium base acts as a heat sink for the LED’s for improved efficiency and to aid the 50,000 hour expected life. An opal diffuser is internally reeded to disperse the light evenly. A factory fitted photocell is standard for automatic dusk to dawn operation.

Highlights

→ High Lumen 100LM/W

→ Robust Cast Aluminum Body

→ Anti-UV Diffuser

→ Emergency,Sensor,DALI

→ Anti Salty,IP65,IK10

→ Uniform Soft Lighting

iLed Wechat
certification
Input 220-240VAC/110-277VAC LED Source LumiLEDs LM80
Watts 30W Lumen Effective 100LM/W
Lumen Output 3000LM Size 308mm x265mm x126mm
Materials Aluminum+Opal polycarbonate diffuse PF >0.9
Color Temperature 2800-6500K CRI >80
Electrical Classification Class I IP Rating IP65
Beam Angel 120° Body Color Black
Warranty 3-5 years Certifications SAA CE ROHS

Send Your Inquiry

Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.

Square Bulkhead Light for Outdoor Lighting

Square Bulkhead Light for Outdoor Lighting



Specifications
Input 220-240VAC/110-277VAC LED Source LumiLEDs LM80
Watts 30W Lumen Effective 100LM/W
Lumen Output 3000LM Size 308mm x265mm x126mm
Materials Aluminum+Opal polycarbonate diffuse PF >0.9
Color Temperature 2800-6500K CRI >80
Electrical Classification Class I IP Rating IP65
Beam Angel 120° Body Color Black
Warranty 3-5 years Certifications SAA CE ROHS

Send Your Inquiry

Description
Why choose us?
Frequently Asked Questions
Applications

Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.

Square Bulkhead Light for Outdoor Lighting

Square Bulkhead Light for Outdoor Lighting



More You're Caring

Feedback from the Clients Who Used

Can’t find a suitable product?

All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.

Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
