| Model NO.: | ILED-DM2 A | Zones | 3 Zone |
| Function | Dimmable for Single Color | Input Voltage | 12-24V DC |

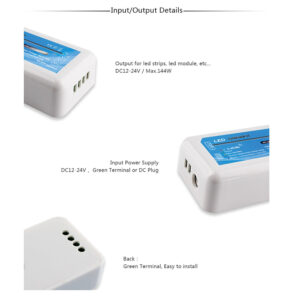

| Input Terminal | DC2.1 and Screw terminal | Output | 4A*3CH |
| Max Power Load | 12V=144W, 24V=288W | Dimming | 0-100% |
| Remoter Frequency | RF 2.4GHz or Push Dim | Operate Temp. | -30°C – +55°C |
| Receiver Dimension | L85*W45*H23mm | Receiver Weight | 45g |
| Remoter Dimension | L150*W40*H13mm | Remoter Weight | 60g |
| Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||

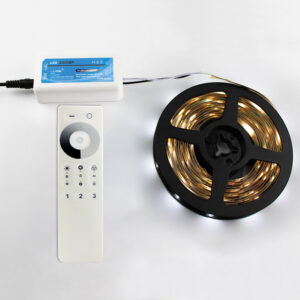

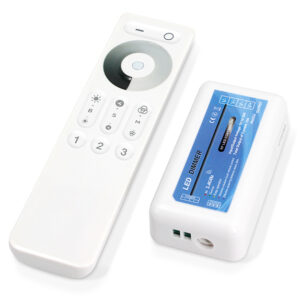

Single Color Controller Dimmer with 2.4G Remoter 3 Zone ILED-DM2 A

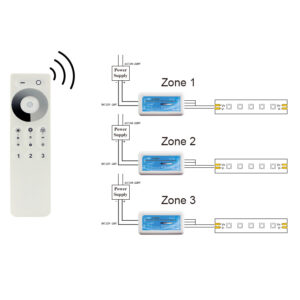

LED-DM2 A is a single color wireless 12V dimmer switch with a 2.4G remoter. The input is DC 12-24V and has 3 channels for loading LED lights and it can support 3 Zones.. Very good for making dimmable to SMD led strip lights and COB led strip light. Professional packaging is good for wholesales and retail.
Key Highlights
- RF 2.4G
- 12VDC 24VDC
- 3 Zones
- Dimmable
- Stable and Flicker Free
- Easy Connection
Category: Dimmer and Controller , Strip and Module Lights
Tags: 2.4G
LED-DM2 A is a single color wireless 12V dimmer switch with a 2.4G remoter. The input is DC 12-24V and has 3 channels for loading LED lights and it can support 3 Zones.. Very good for making dimmable to SMD led strip lights and COB led strip light. Professional packaging is good for wholesales and retail.
Quality Assurance: Rigorous testing and premium components ensure long-lasting performance.
Expert Support: Our engineering team provides full technical support for your projects.
Fast Delivery: Global logistics network ensures your products arrive on time.
Is this dimmable? Yes, compatible with most PWM dimmers.
Can it be cut? Yes, cuttable every 50mm.
What is the warranty period? We offer a standard 3-year warranty on all our premium LED lighting systems.
The RF 2.4G controller is used for single-color lighting systems, providing wireless control over the color and brightness settings. It is commonly employed in applications such as home lighting, stage lighting, and automotive lighting, offering convenient and flexible control without the need for direct physical contact.
