| Model NO.: | ILED-DM2 B | Zones | 3 Zone |
| Function | Dimmable and CCT | Input Voltage | 12-24V DC |
| Input Terminal | DC2.1 and Screw terminal | Output | 6A*2CH |
| Max Power Load | 12V=144W, 24V=288W | Dimming | 0-100% |
| Remoter Frequency | RF 2.4GHz or Push Dim | Operate Temp. | -30°C – +55°C |
| Receiver Dimension | L85*W45*H23mm | Receiver Weight | 45g |
| Remoter Dimension | L150*W40*H13mm | Remoter Weight | 60g |
| Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||

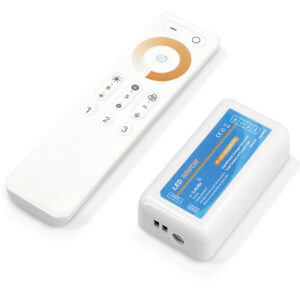

CCT Dual Color Controller Dimmer with 2.4G Remoter 3 Zone ILED-DM2 B

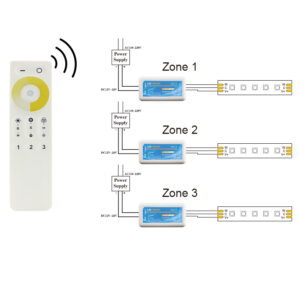

ILED-DM2 B is a dual color wireless 12V dimmer switch controller with a 2.4G remoter. The input is DC 12-24V and has 3 Channels for loading CCT dual color LED lights.It can support 3 Zones. Very good for making dimmable to CCT dual color SMD led strip lights and CCT dual color COB led strip light. Professional packaging is good for wholesales and retail.
Key Highlights
- RF 2.4G
- 12VDC 24VDC
- 3 Zones
- Dimmable and CCT Dual Color
- Stable and Flicker Free
- Easy Connection
Category: Dimmer and Controller , Strip and Module Lights
Tags: 2.4G , CCT Dual Color
ILED-DM2 B is a dual color wireless 12V dimmer switch controller with a 2.4G remoter. The input is DC 12-24V and has 3 Channels for loading CCT dual color LED lights.It can support 3 Zones. Very good for making dimmable to CCT dual color SMD led strip lights and CCT dual color COB led strip light. Professional packaging is good for wholesales and retail.
Quality Assurance: Rigorous testing and premium components ensure long-lasting performance.
Expert Support: Our engineering team provides full technical support for your projects.
Fast Delivery: Global logistics network ensures your products arrive on time.
Is this dimmable? Yes, compatible with most PWM dimmers.
Can it be cut? Yes, cuttable every 50mm.
What is the warranty period? We offer a standard 3-year warranty on all our premium LED lighting systems.
CCT dual color LED controllers are used in applications where adjustable color temperature lighting is desired. They are commonly used in residential and commercial settings, such as homes, offices, hotels, and restaurants, where the ability to switch between warm and cool lighting is important. These controllers allow users to create different moods and lighting scenarios, making them suitable for ambiance lighting, task lighting, architectural lighting, and retail displays where color temperature control is desired to enhance the overall aesthetics and functionality of the space.
