| Model | FEL-CD201 DMX Decoder 32 Channel RDM PWM RGB RGBW |
| Working Voltage | DC5-24V |
| Max Load Current | 3A/CH×32, Max 96A |
| Max Output Power | 480W(5V)/1152W(12V)/2304W(24V) |
| Scale Levels | 256 levels(8bit)/65536 levels(16bit) |
| Input Signal | DMX512/RDM |
| Output Signal | Constant Voltage PWM×32CH |
| Output Frequency | 1K、2K、4K、8K selectable |
| Decode Channel | 32CH |
| DMX512 Socket | XLR-3R/ Rj45/ Terminal block |
| Control Mode | DIM /CT /RGB /RGBW 4 modes switch |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L195 X W145 X H38(mm) |
| Weight | 810g |
DMX Decoder 32 Channel RDM PWM RGB RGBW
FEL-CD201 32-Channel DMX Decoder with RDM and PWM output is a professional lighting controller for RGB, RGBW, and tunable white LED systems. It supports DMX512/RDM protocols with 32 channels at 3A each (max 96A), offering 8/16-bit resolution and selectable PWM frequencies up to 8KHz for flicker-free performance. Featuring an OLED display, multiple DMX interfaces (XLR, RJ45, terminal), and DC5-24V operation, it delivers precise control up to 2304W at 24V, ideal for architectural, stage, and commercial installations.
Key Highlights
- 32 Channels, 3A per CH
- OLED Control
- 8/16-bit grey scales
- RDM Enabled
- XLR-3R,RJ45 and Terminal
Category: DMX Decoder , Lighting Controller
Tags: Event Lighting

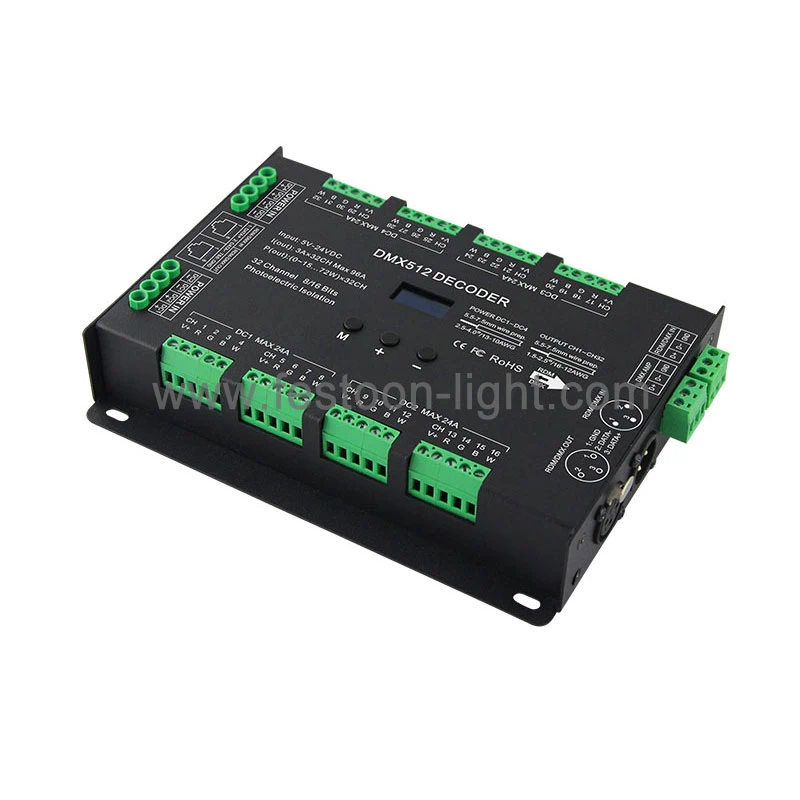

iLed FEL-CD201 is a robust 32-channel DMX/RDM decoder engineered for advanced LED lighting systems. It converts standard DMX512 signals into 32 channels of high-resolution PWM output, perfect for driving single-color, tunable white (CT), RGB, and RGBW LED products.
Key Features:
32 Channels: 3A per channel, supporting a maximum load of 96A.
High Resolution: 8-bit (256 levels) or 16-bit (65,536 levels) grayscale for smooth dimming and color mixing.
PWM Frequency: Selectable 1K, 2K, 4K, or 8KHz to eliminate flicker in video-sensitive applications.
Input/Output: DMX512/RDM input; Constant Voltage PWM ×32CH output.
Connectivity: Multiple DMX interfaces including XLR-3R, RJ45, and terminal block for flexible installation.
Control Modes: Easy switching between DIM, CT, RGB, and RGBW modes.
User Interface: Built-in OLED screen for intuitive addressing and parameter adjustment.
Power: DC5-24V input with max output power of 480W (5V) / 1152W (12V) / 2304W (24V).
Build: Compact dimensions (L195 × W145 × H38mm) and 810g weight, with operating temperature range of -20°C to 55°C.
RDM (Remote Device Management) capability allows for bidirectional communication, simplifying remote addressing and diagnostics in large installations. Users praise its stability, lack of flicker, and seamless compatibility with LED strips and fixtures.
Superior Performance: 16-bit resolution and high PWM frequencies deliver ultra-smooth, flicker-free lighting essential for professional stage, broadcast, and architectural applications.
Versatility: Supports multiple control modes (DIM/CT/RGB/RGBW) and works with a wide range of low-voltage LED products.
Reliability & Ease of Use: RDM support, OLED interface, and multiple connection options make setup and management straightforward even in complex systems.
High Power Capacity: Handles demanding loads up to 2304W, reducing the need for multiple units.
Proven Quality: Positive customer feedback highlights stability, no flicker, and excellent compatibility with iLed and other LED lighting solutions.
Professional Features: RDM-enabled for modern lighting networks, making it future-proof for large-scale projects.
It supports up to 480W at 5V, 1152W at 12V, or 2304W at 24V, with 3A per channel across 32 channels (max 96A total).
Yes, it features dedicated RGBW mode along with DIM, CT, and RGB modes for full compatibility.
RDM (Remote Device Management) enables bidirectional communication over DMX, allowing remote addressing, configuration, and monitoring without manual intervention.
Absolutely. Selectable high PWM frequencies (up to 8KHz) and 16-bit resolution ensure flicker-free operation suitable for high-speed camera work.
Standard DMX512 and RDM signals via XLR-3R, RJ45, or terminal block connections.
Yes, the built-in OLED display and buttons allow straightforward address setting and mode selection.
Architectural and Facade Lighting: Precise color and dimming control for building exteriors and landscape features.
Stage and Event Lighting: Professional setups for concerts, theaters, exhibitions, and temporary events requiring complex RGB/RGBW effects.
Commercial and Retail Spaces: Dynamic lighting for shops, hotels, restaurants, and showrooms.
TV/Film/Broadcast Studios: Flicker-free performance ideal for video production.
Large-Scale LED Installations: Control of extensive RGB/RGBW strip lighting arrays, linear lights, and modules in entertainment venues or theme parks.
Industrial and Specialty Projects: Tunable white (CT) lighting for offices, galleries, or functional spaces needing high-power, reliable control.
