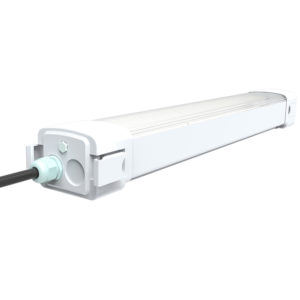

Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light is designed as a smart luminaire for saving much labor by double lock ends so that electrical engineer doesn't need to open the fixture to connection, just open the end without any tool. our Lock Buckle LED Tri-proof Light use Osram LED and Osram LED Driver provide high lumen output and long-life with economic price to meet any requirments of lighting to walkways,tunnels, storage areas, car parks etc.
Category: Commercial LED Light , LED Tri-proof Light
Tags: Area Lighting
| Model | Wattage | Lumen Output | Dimensions |
| ILED-TRP-60B P1 | 20W | 2200LM (110LM / W) | 600x84x69mm |
| ILED-TRP-120B P1 | 40W | 4400LM (110LM / W) | 1200x84x69mm |
| ILED-TRP-150B P1 | 60W | 6600LM (110LM / W) | 1500x84x69mm |
| Input | 220V~240VAC 50/60Hz | LED Source | LM80 LEDs |
| Materials | PC Body, Aluminium Heat Sink and PC Diffuser | PF | >0.9 |
| CCT | 2800-7000K | CRI | >80 |
| Electrical Classification | Class II | IP Class | IP65 |
| Beam angle | 120° | Body Color | White Painted or Silver |
| Warranty | 3~5 years | Certification | CE&RoHS&SAA,TUV |
Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light is designed as a smart luminaire for saving much labor by double lock ends so that electrical engineer doesn’t need to open the fixture to connection, just open the end without any tool. our Lock Buckle LED Tri-proof Light use Osram LED and Osram LED Driver provide high lumen output and long-life with economic price to meet any requirments of lighting to walkways,tunnels, storage areas, car parks etc.
Quality Assurance: Rigorous testing and premium components ensure long-lasting performance.
Expert Support: Our engineering team provides full technical support for your projects.
Fast Delivery: Global logistics network ensures your products arrive on time.
Is this dimmable? Yes, compatible with most PWM dimmers.
Can it be cut? Yes, cuttable every 50mm.
What is the warranty period? We offer a standard 3-year warranty on all our premium LED lighting systems.
Commonly used in industrial and commercial settings where durability, water resistance, and high-quality lighting are essential. They are ideal for environments such as warehouses, parking garages, workshops, factories, and outdoor areas where moisture, dust, and vibration are present. These lights are designed to withstand harsh conditions and provide reliable illumination, making them suitable for areas where traditional lighting fixtures may fail. LED triproof lights offer energy efficiency, long lifespan, and excellent light distribution, ensuring optimal visibility and safety in challenging environments while reducing maintenance and energy costs.
