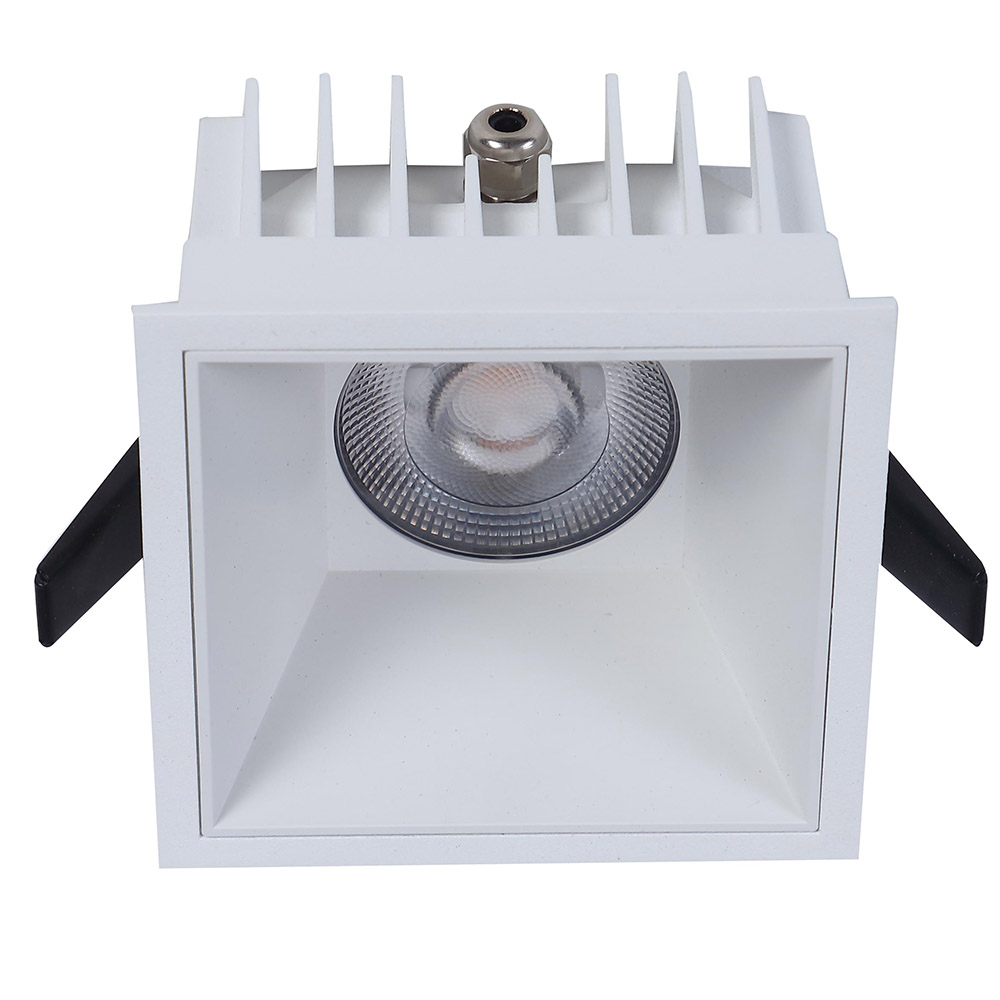

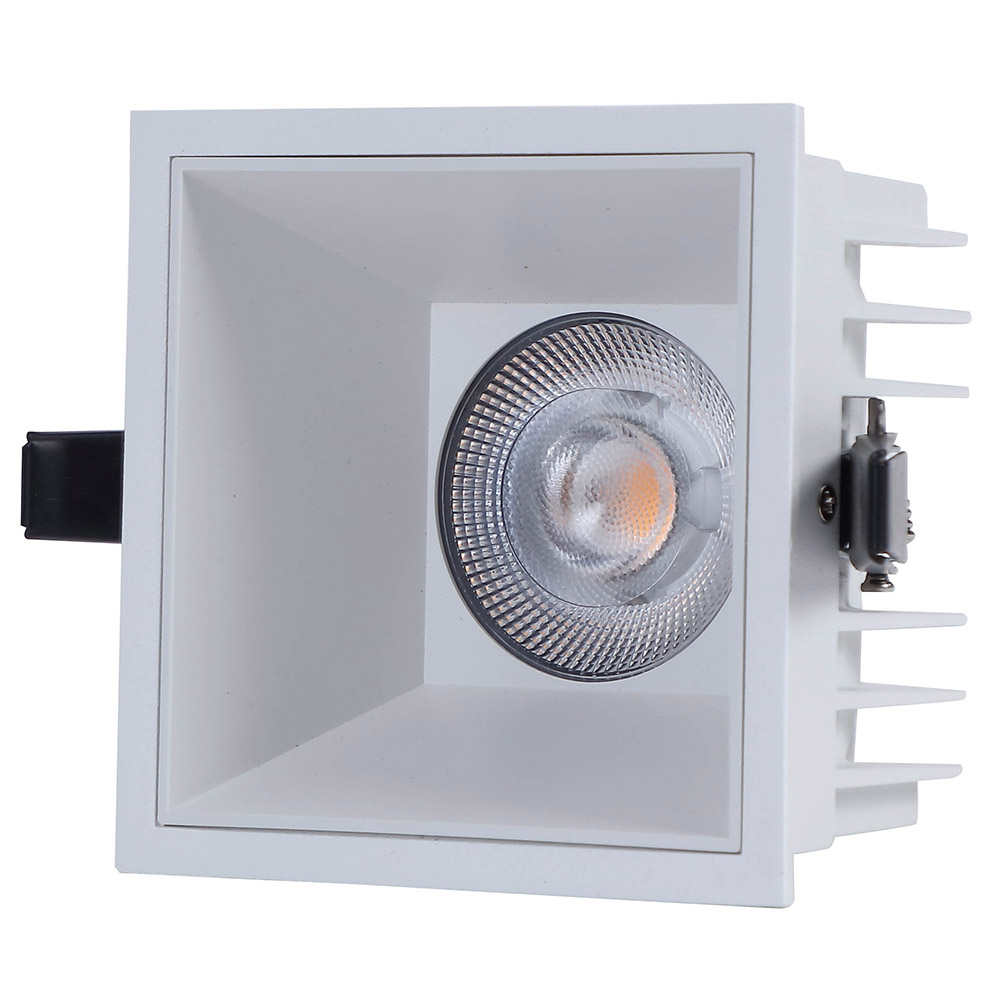

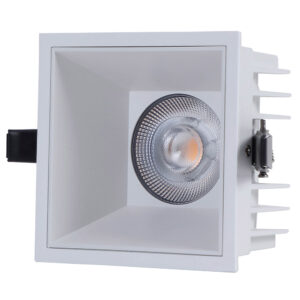

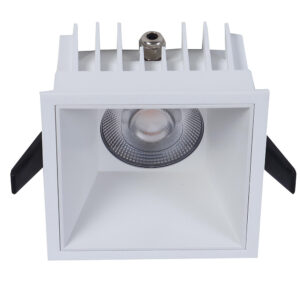

IP65 Downlights LED Square Recessed 10-40W ILED-DL-A D4
Blessing downlight is new design commercial square downlights for projects by iLed. Which is waterproof to meet IP Rated IP65, Citizen or CREE LEDs with quality driver and strong heat sink can be long life 50 000 hours for your projects of hotel,home bathroom,corridor airport and weather areas. The size range has 3 inch,4 inch, 5 inch, 6 inch. Watts range is 12W-45W.
Highlights
→ High Lumen 100LM/W
→ Cree or Citizen COB,CRI>92
→ URG<17,IP65
→ Aluminum Body
→ DALI,Triac,0-10V Dimmable
→ Emergency
Key Data:
|
Model |
Watts |
Lumen |
Size |
out |
Beam angle |
IP Class |
Function |
|
ILED-DL3-A D4 |
18W |
1800LM |
100x100x64mm |
90x90mm |
15° 24° 38° or 60° |
IP65
|
Normal Triac Dimmable 0-10V Dimmable DALI Dimmable Emergency |
|
ILED-DL4-A D4 |
28W |
2800LM |
136x136x83mm |
125x125mm |
|||
|
ILED-DL5-A D4 |
38W |
3800LM |
158x158x96mm |
145x145mm |
|||
|
ILED-DL6-A D4 |
48W |
4800LM |
180x180x109mm |
165x165mm |
| Input | 110-277VAC or 220-240VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Electrical Classification | Class II | IP Class | IP65 |
| Body Color | White/ Black | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.
Key Data:
|
Model |
Watts |
Lumen |
Size |
out |
Beam angle |
IP Class |
Function |
|
ILED-DL3-A D4 |
18W |
1800LM |
100x100x64mm |
90x90mm |
15° 24° 38° or 60° |
IP65
|
Normal Triac Dimmable 0-10V Dimmable DALI Dimmable Emergency |
|
ILED-DL4-A D4 |
28W |
2800LM |
136x136x83mm |
125x125mm |
|||
|
ILED-DL5-A D4 |
38W |
3800LM |
158x158x96mm |
145x145mm |
|||
|
ILED-DL6-A D4 |
48W |
4800LM |
180x180x109mm |
165x165mm |
| Input | 110-277VAC or 220-240VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Electrical Classification | Class II | IP Class | IP65 |
| Body Color | White/ Black | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.
Feedback from the Clients Who Used
We bought the big size 8 inch 40W Recessed LED Downlights from iLed, Which has very good heat sink and super brightness.These downlights help us win good feedback from clients.
Marlon
Purchasing Manager
We sold plenty of 9W recessed LED downlights of iLed. Our clients like the high color index and perfect triac dimmable driver for the existed leading edge or trailing edge dimmer.
Craig Horni
Lighting Wholesale
If you are looking for a manufacturer who can provide top quality DALI LED downlights, I suggest iLed is your good partner.iLed’s DALI downlights use quality materials with good compatibility.
Richard Austin
Lighting Designer
We use different styles of LED downlights from iLed. Their guys always can give the suitable downlights according to our requirements, whatever it is high cri, anti-glare,branded light source or drivers.
Eddie Nehme
Product Manager
After tested some suppliers’ emergency LED downlights,we chosed iLed because they are professional in emergency lighting,and manufacture quality&durable emergency downlights to us.
Serge Cesar
Senior Engineer
We used iLed’s high wattage downlights as the header for our subway projects. Customers chose us, and iLed always made us complete the projects perfectly on time and with quality.
Lionel Plantain
Project Manager
Can’t find a suitable product?
All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.
Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
