Gimbal LED Downlight COB Embedded Rotatable for Shop Lighting ILED-DL-A D10

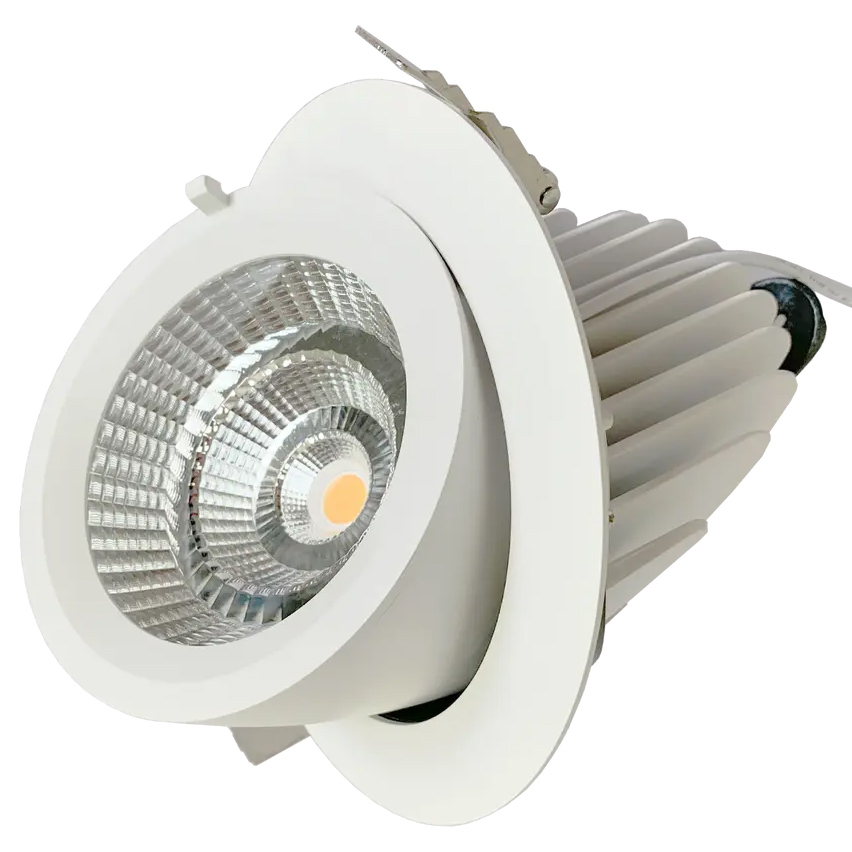

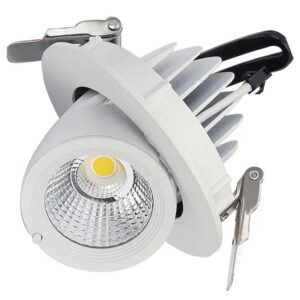

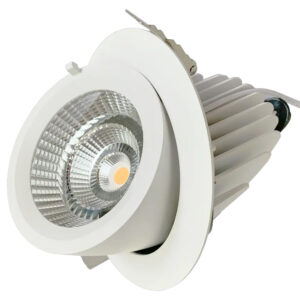

The ILED-DL-A D10 is a recessed gimbal LED downlight with a rotatable head, built for shop and display lighting. The head turns after the housing is fixed, so the beam can be aimed at a shelf, a garment, or a display case without moving the fixture. The Citizen, Osram, Philips, or CREE COB source delivers around 100 lm/W, and the low-glare reflector keeps the source out of normal viewing angles.

Models

Five models cover the range:

• ILED-DL3-A D10 9W: 900 lm, body 95mm diameter by 70mm deep, cutout 75mm
• ILED-DL3-A D10 12W: 1200 lm, body 114mm diameter by 95mm deep, cutout 100mm
• ILED-DL4-A D10 20W: 2000 lm, body 138mm diameter by 120mm deep, cutout 128mm
• ILED-DL5-A D10 30W: 3000 lm, body 165mm diameter by 145mm deep, cutout 150mm
• ILED-DL6-A D10 45W: 4500 lm, body 190mm diameter by 165mm deep, cutout 175mm

Each model steps up in output and opening size, so the choice of cutout should be made against the final ceiling plan. The larger bodies also give more surface for heat dissipation around the COB source. The 9W model is the choice for a single shelf accent; the 45W model covers a wide display or a higher ceiling.

Optics and color

Lens options depend on the model. The 9W unit takes 24° or 45°. The 12W, 20W, 30W, and 45W units take 15°, 24°, 38°, or 60°. The 15° optic is a tight spot for a single shelf or picture; the 24° and 38° optics suit display lighting and general coverage; the 60° optic spreads widest for open areas. The lens is fixed when the unit is ordered and cannot be swapped after delivery. Color temperature is selectable within 2700K-5000K, and CRI is above 92, so fabric and finish colors read accurately under the light.

Construction

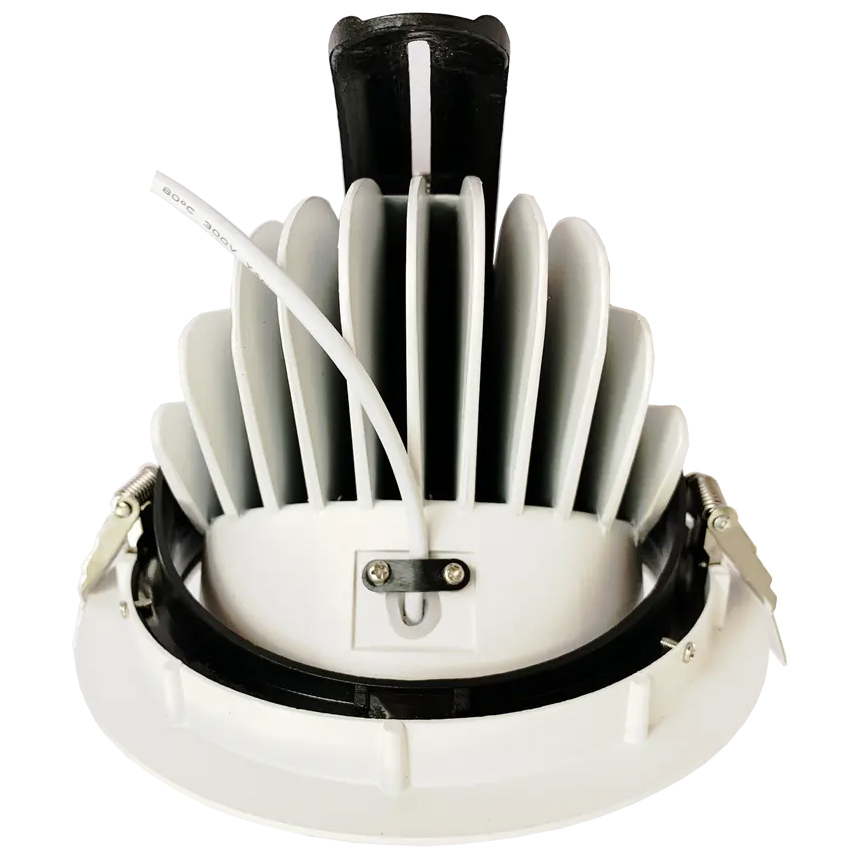

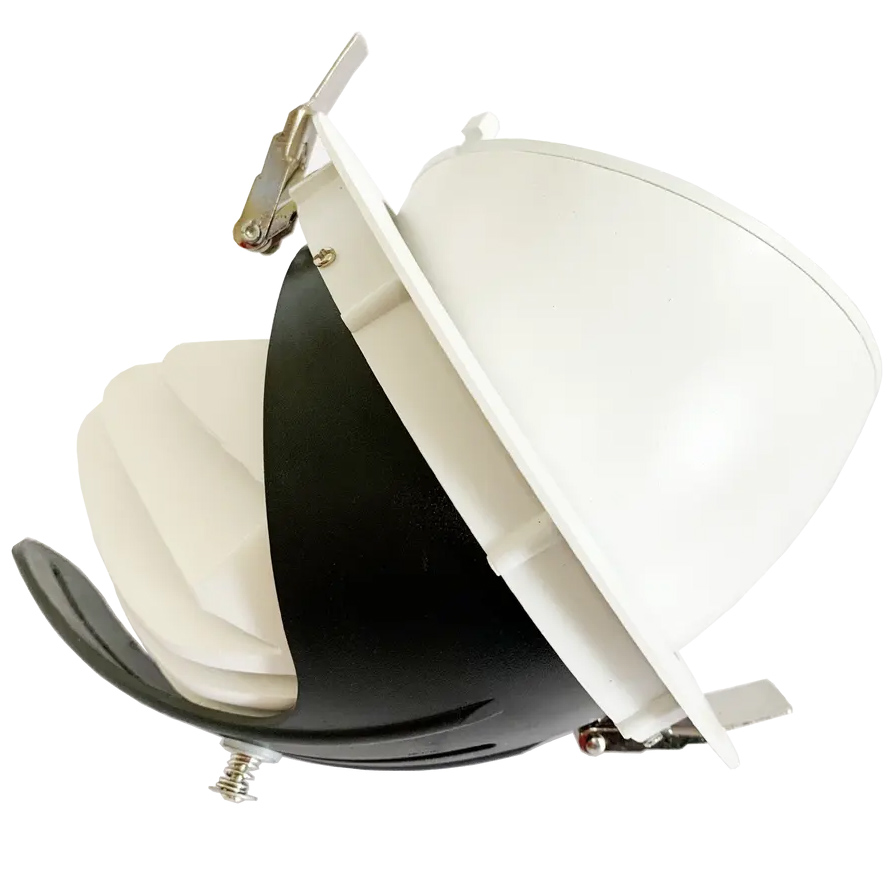

The housing is aluminum with a PC component, finished in white or black, chosen at order. The IP rating is IP42 or IP44, so the fixture is fine for dry indoor rooms and the higher grade adds protection against splashes. The electrical classification is Class II. The gimbal head is part of the trim, so aiming is done by hand after the housing is seated.

Controls and electrical

Input is 100V~240VAC 50/60Hz with power factor above 0.9. Control is chosen at order: DALI dimmable, Triac dimmable, 0-10V dimmable, or emergency. The DALI version links into a building management system; the Triac version works with standard wall dimmers; the 0-10V version uses a low-voltage control signal. The emergency version connects to a backup supply and requires separate wiring, so confirm the details with the sales team before ordering.

Installation

The fixture recesses into a plasterboard ceiling. Cut a round opening to the cutout size for the model, wire the driver, then seat the housing. Aim the head before the trim is locked into place, and adjust again later if the display changes. Always switch off the supply at the breaker before wiring. A standard hole saw of the right diameter is enough; no template is needed.

Where it fits

The D10 suits shops, showrooms, museums, and hotels where a small accent light has to be aimed at a specific spot. In a store, a row of 15° or 24° units picks out products while leaving the aisle darker. In a gallery, the gimbal head lets the beam follow a new display without moving the fixture. Because the head rotates, the same housing can aim at a wall, a table, or straight down.

Warranty and certifications

The ILED-DL-A D10 carries CE, RoHS, SAA, and TUV certification, and is covered by a 3-5 year warranty. If the project needs certification documents on file, they can be requested from the sales team.

The ILED-DL-A D10 is a direct answer for shop and display lighting that has to be aimable.

• Rotatable head. The gimbal turns after installation, so the beam lands on the product, not on the ceiling.
• Choice of optics. The 9W model takes 24° or 45°; the 12W to 45W models take 15°, 24°, 38°, or 60°.
• Accurate color. CRI above 92 and CCT from 2700K to 5000K cover warm retail settings and cooler display areas.
• Efficient output. Around 100 lm/W from a Citizen, Osram, Philips, or CREE COB source keeps energy use low for the light delivered.
• Wide output range. Five models from 9W to 45W, with cutouts from 75mm to 175mm.
• Flexible control. DALI, Triac, 0-10V, or emergency versions, selected at order.
• Documented compliance. CE, RoHS, SAA, and TUV certification, with a 3-5 year warranty behind the unit.

For aimable shop downlights, this is the range we point buyers to first.

The ILED-DL-A D10 suits spaces where a small accent light has to be aimed at a specific spot. In shops, a row of 15° or 24° units picks out shelf edges and display cases while leaving the aisle darker. The rotatable head lets the beam follow a garment or product when the display moves, without re-mounting anything.

In museums and galleries, the gimbal head aims the light at a new piece without moving the fixture, and the CRI above 92 keeps artwork colors accurate. In hotels, the same housing works over counters, corridors, and lobby displays.

The 9W model fits a 75mm cutout and works as a short accent over a single shelf. The 45W model covers a 175mm cutout with 4500 lm for higher ceilings or wider displays. Because the head rotates, the same housing can aim at a wall, a table, or straight down, which makes the fixture useful when the display layout changes between seasons. In a fitting room or jewelry counter, the tight 15° optic draws attention to a single piece without spilling light onto the customer.

A few points to check before you order the ILED-DL-A D10.

• Cutout size. Cutouts run from 75mm to 175mm depending on the model. Measure the ceiling opening before ordering, because the housing cannot shrink.
• Lens angle. The 9W model takes 24° or 45°; the other models take 15°, 24°, 38°, or 60°. The lens is fixed at order and cannot be swapped in the field.
• Control choice. DALI, Triac, 0-10V, or emergency is selected at order. Changing control type after delivery means a different driver.
• LED source. The fixture uses a Citizen, Osram, Philips, or CREE COB. If the project specifies one brand, mention it with the order.
• Emergency version. It needs separate wiring to a backup supply. Ask our sales team for the wiring details and runtime before ordering.
• Dry indoor only. IP42 or IP44 is for indoor rooms, not wet or dusty sites.

If anything is unclear, send a message to our sales team before ordering. It costs a minute and avoids a wrong fixture.
